Roll fabric Auto feeding laser cutting machine is with auto feeding system, suitable for cutting roll to roll fabric、embroidered textile、 cloth、felt、garment. Big working area. Auto feeder is optional.
Item NO.:
FLG-1810 1812 1814Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
Roll fabric Auto feeding laser cutting machine is with feeding steel mesh, used for whole roll fabric textile. It had better work with auto feeder to achieve the continous feeding and cutting. The auto feeder is optional.

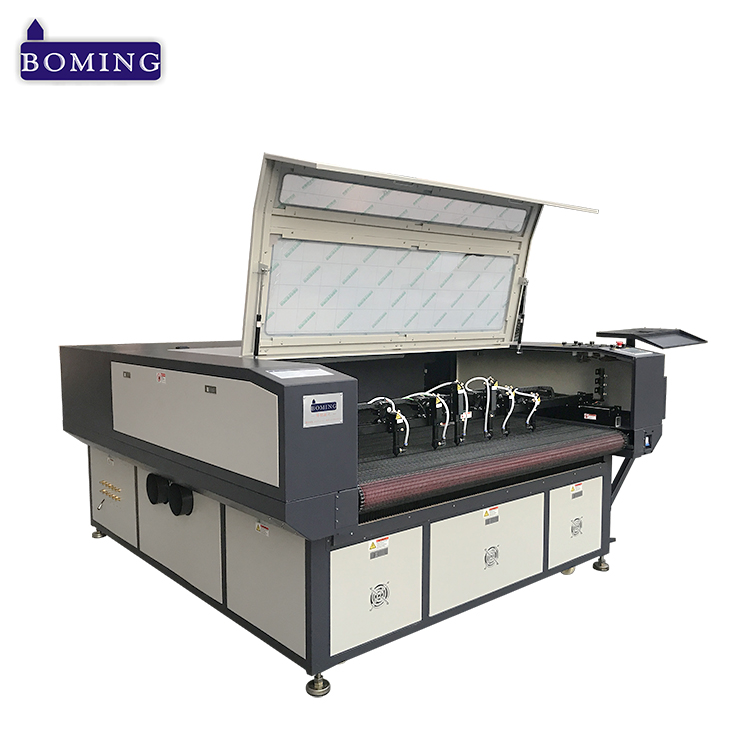

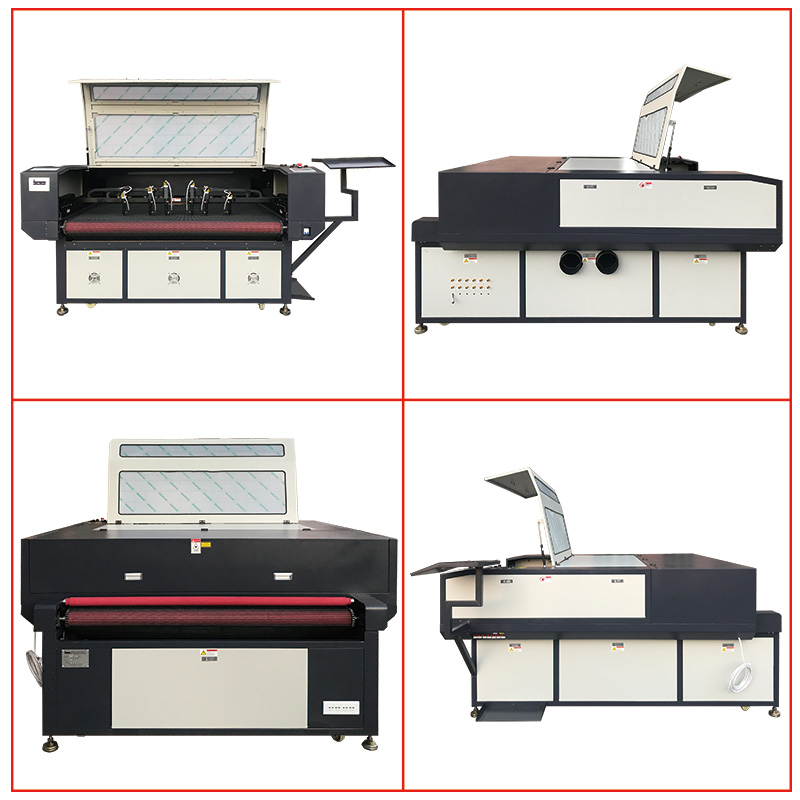

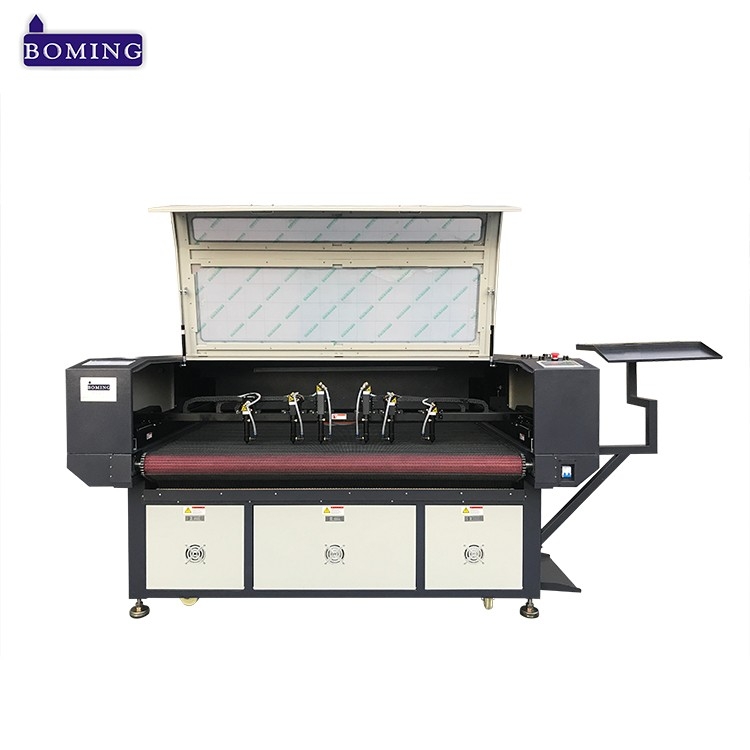

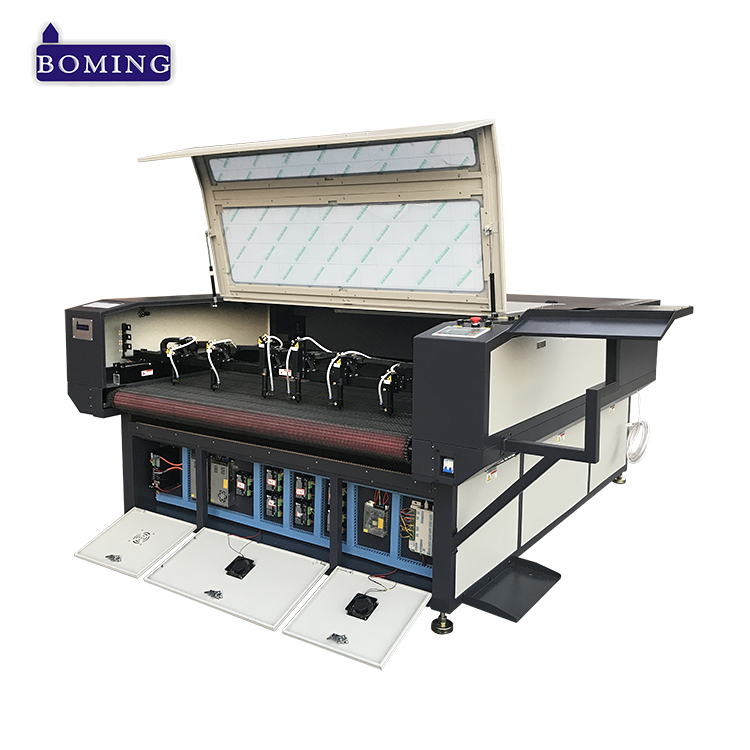

Machine Pictures:
Features: fo Roll fabric Auto feeding laser cutting machine
1、It feeds the materials fully automatically, the worker can operate several machines at the same time.
2、The follow-up rolling platform is developed indepently, cutting 2-6 layers according to different materials.It can achieve
more accurate, higher speed, higher efficiency cutting comparing the normal auto feeding machine
3、Choosing the 150W-180W big capacity laser tube can make the machine achieving fast stable and continous cutting in 24 hours.

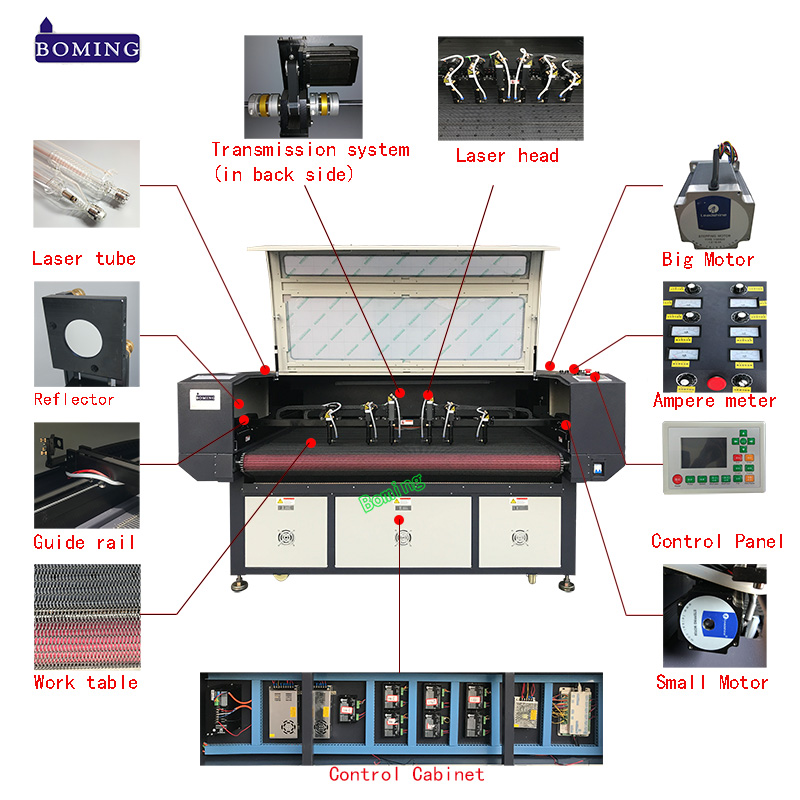

Configuration: of auto feeding Laser Cutting Machine
1）Motor: Three phase subdivision step motor and driving system from LEADSHINE.
2）LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.
3）Optional: 60-80-100-130-150W-180W laser tube.
4）Honeycomb plate/ Square bottom plate/blade strip plate
5）Outward sliding guide rail, inward sliding guide rail, integrated frame structure
6）Original laser mirror from II-VI INFRARED, USA, adjustable laser head
7）Imported type original transmission belt(Tank chain).
8）Centrifugal fan.
9）Three protection function: safety protection, filter protection, water protection.
10）Optional: Automatic circulation cooling water tank.
11）Give freely compressed magnetic pump.
12）Give freely Boming copyrighted software 1set, free upgrade
Applicable Industries: of roll fabric laser cutting machine
The machine is widely used in the industries such as shoe,bag, garment,toy,furniture, advertisement,car accessories,sports Accessories,etc.
Applicable Materials: of co2 laser cut machine
Suitable for the materials, such as plush,fur,paper board,insole,PU,cloth,microfiber leather,
microfiber PU,etc.
Technical Parameters:of feeding Laser Cutting Machine
Laser Capacity | 100W 130W 150W CO2 glass tube |
Processing Area(mm) | 1600*1000 1800*1000 1800*1200 1800*1400 2000*1000 2000*1200mm |
Positional Accuracy | ±0.05mm |
Working way | Auto feeing |
Cutting Speed | 0-60m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Our Payment: of ccd camera laser cutting machine
1) Usually we accept T/T, Irrevocable L/C at sight.
2) 30% deposit, the 70% balance should be paid clear before delivery.
3) The delivery day is 7-10 working days.
4) The MOQ is 1set.
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory manufacturing laser machine and we provide perfect after-sale service.
Q: How can I know your machine work well?
A: Before delivery, we do test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q:This is the first time I use this kind of machine, is it easy to operate?
A: We will equip English manual or video that show you how to operate machine. The engineer is available for overseas service.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
