fabric 300W dual head autofeed laser cutter is with double head and auto feeding system, with water coolong on lens and mirrors, suitable for cutting roll to roll fabric、embroidered textile、cloth、felt、garment, leather and other non metal materials. Big working area. Auto feeder is optional. One head, two head, four head and six head are optional.
Item NO.:
FLG-1610 1612 1812Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
fabric 300W dual head autofeed laser cutter is with feeding steel mesh, used for whole roll fabric textile. It had better work with auto feeder to achieve the continous feeding and cutting. The auto feeder is optional. It can achieve for continous cutting for 24 hours. 300W big laser capacity is suitable for cutting thick materials with fast speed, can improve the work efficiency.

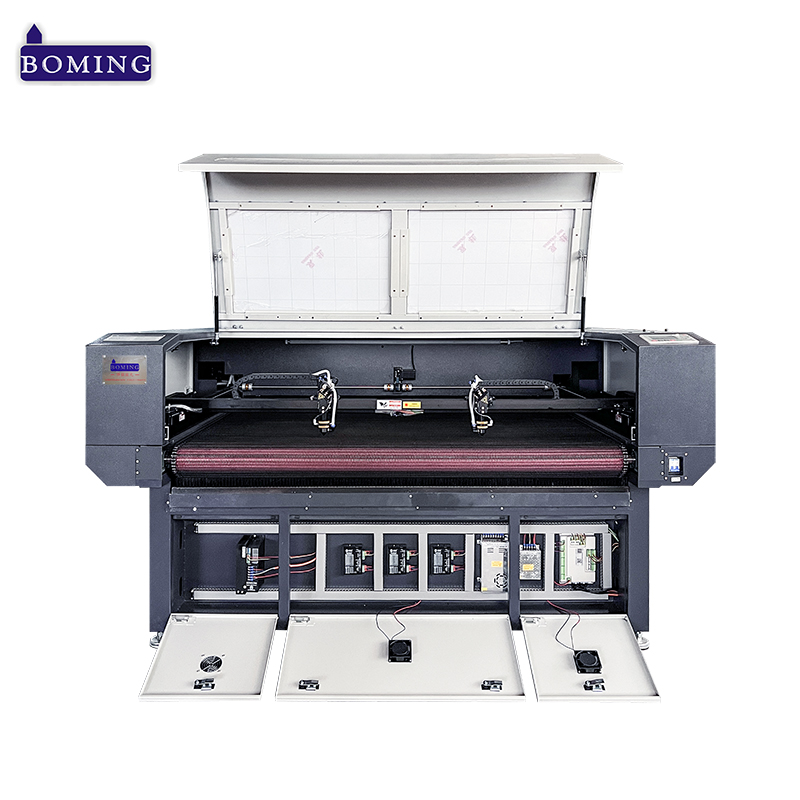

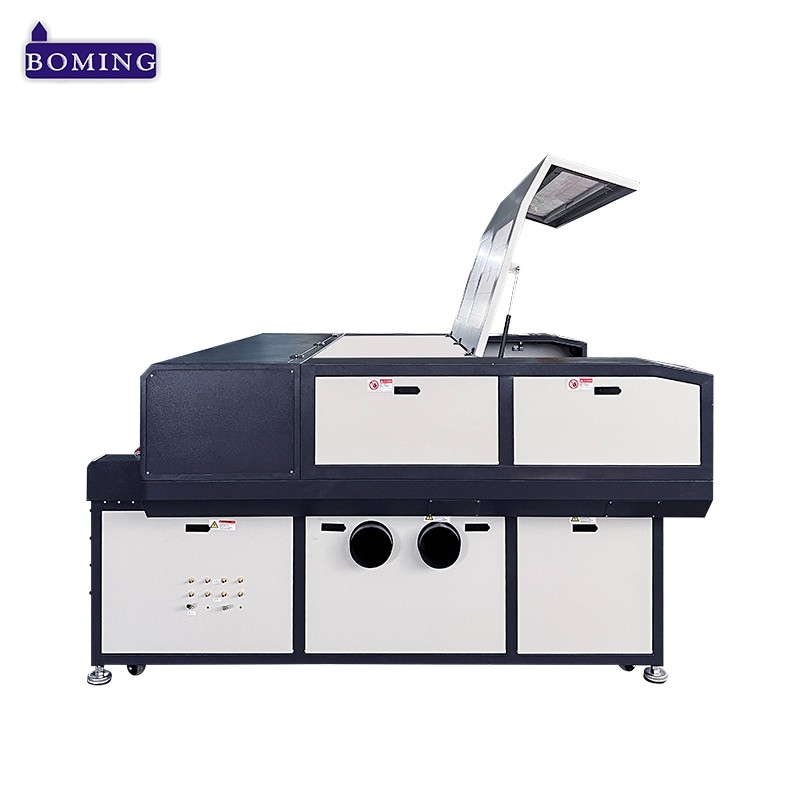

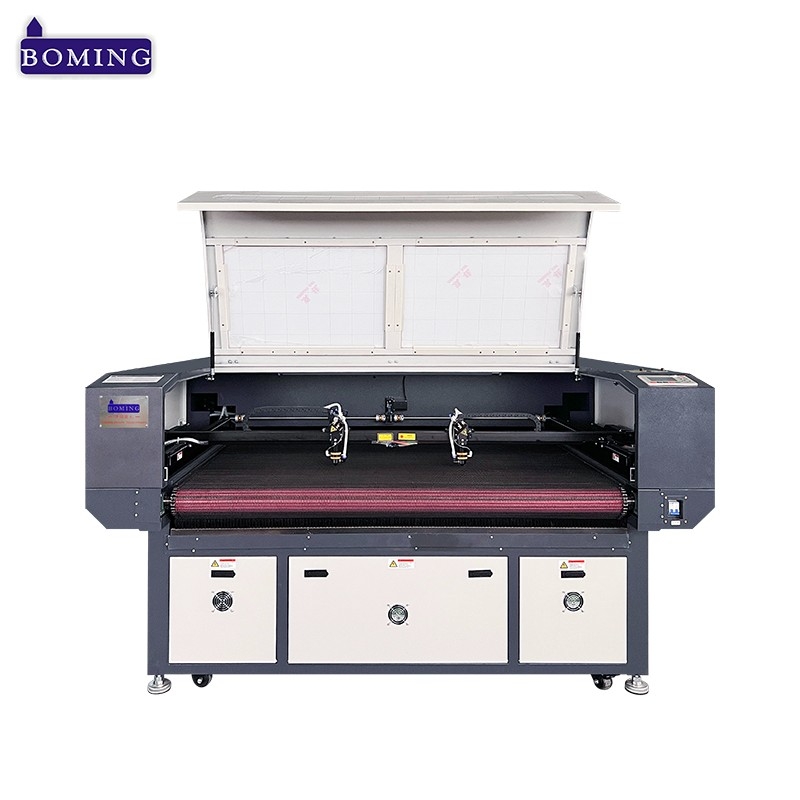

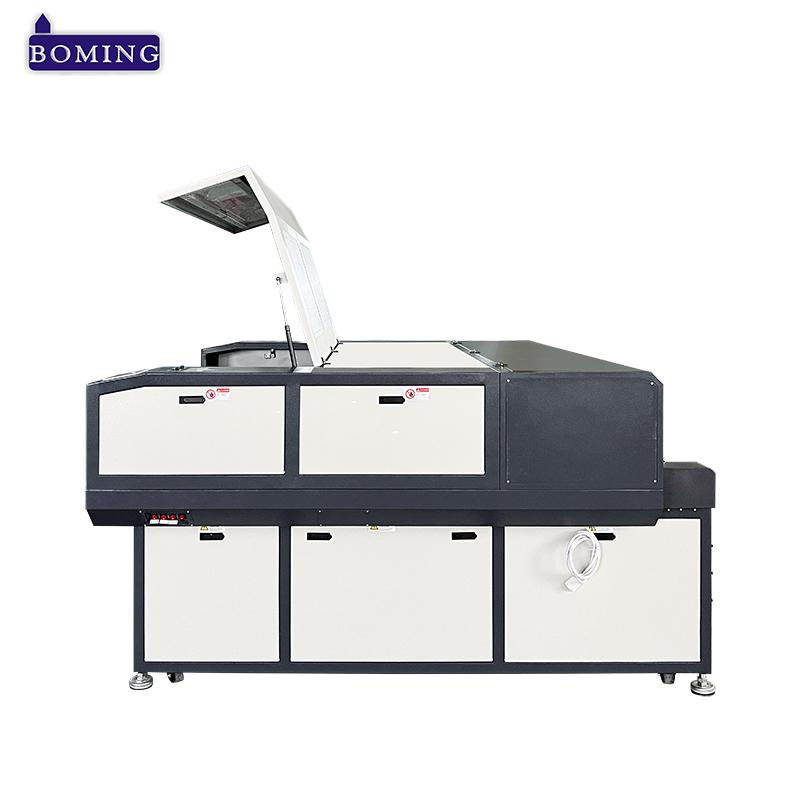

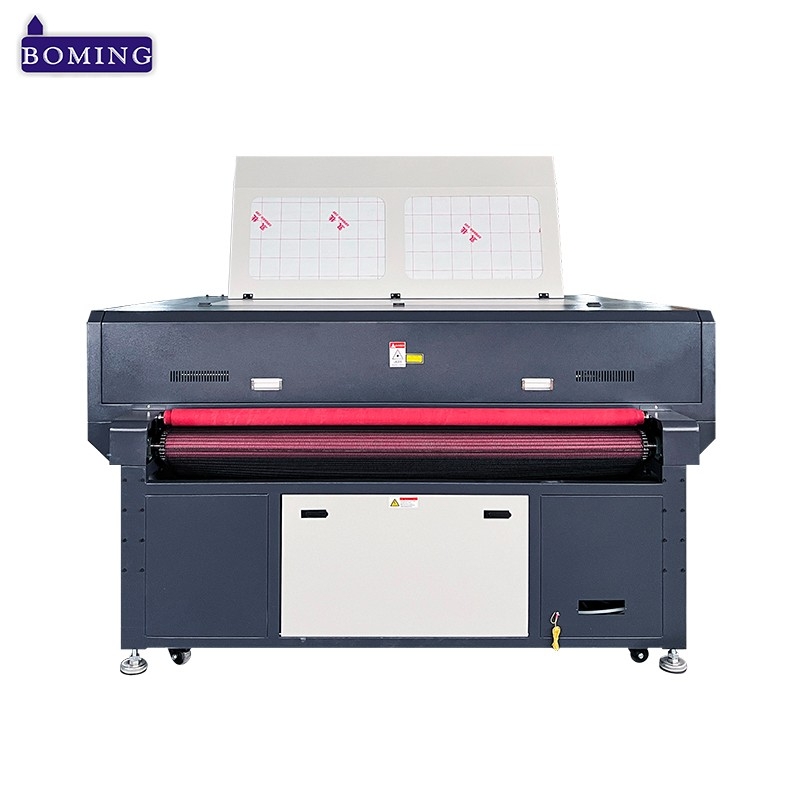

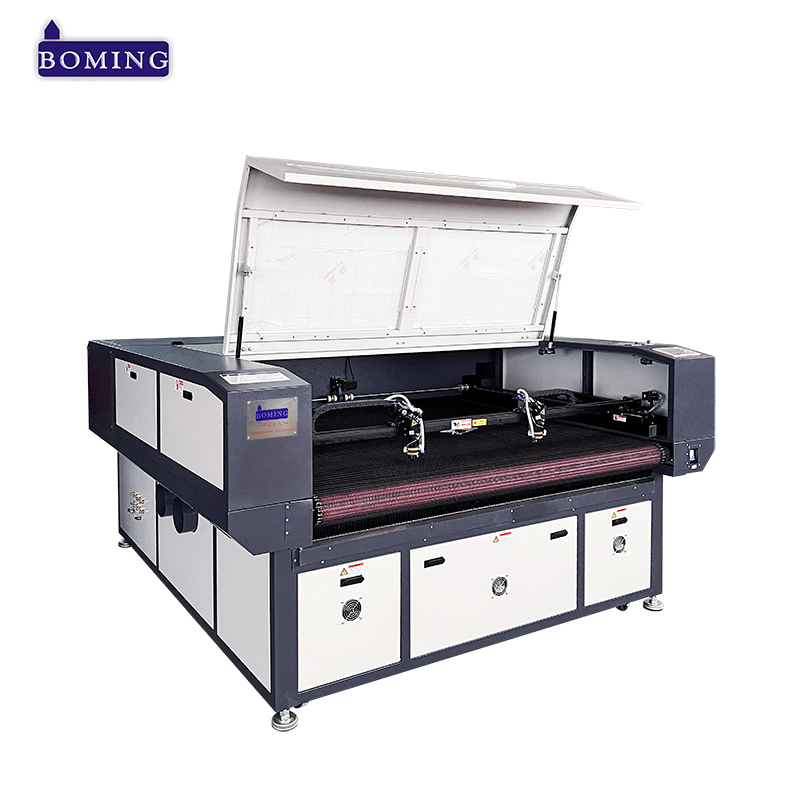

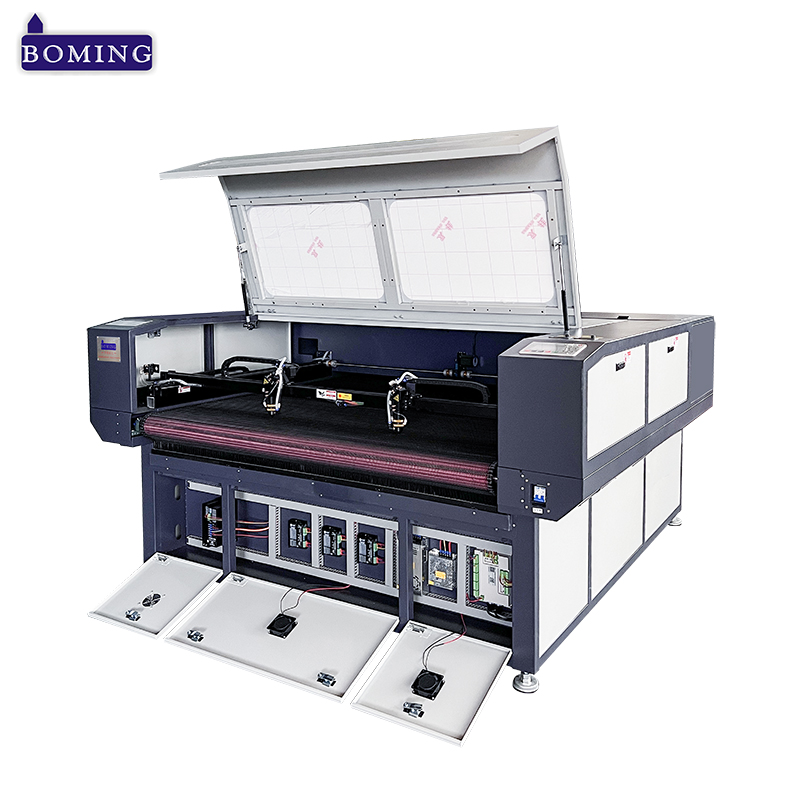

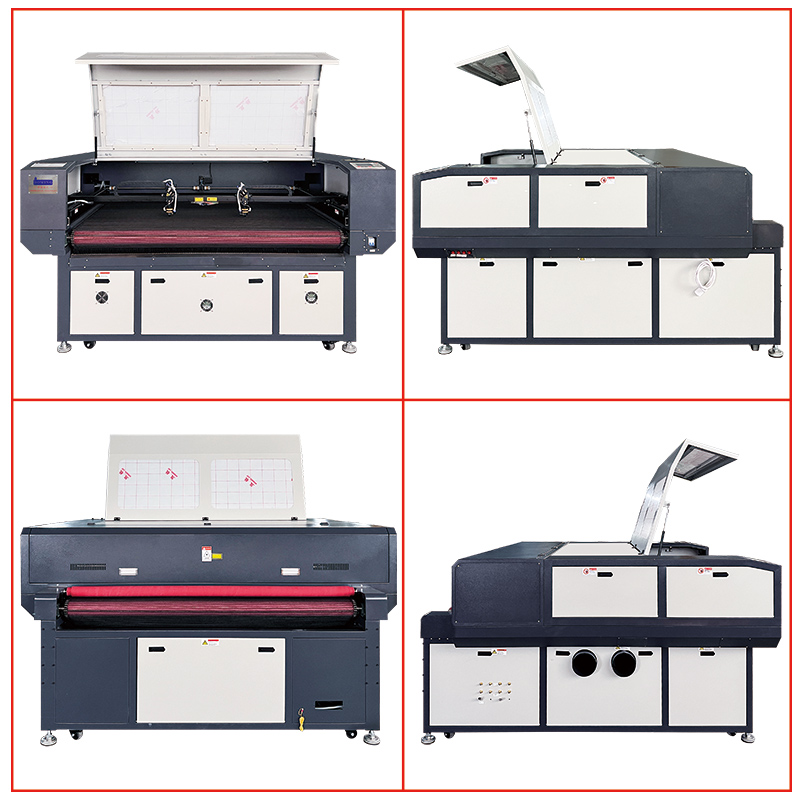

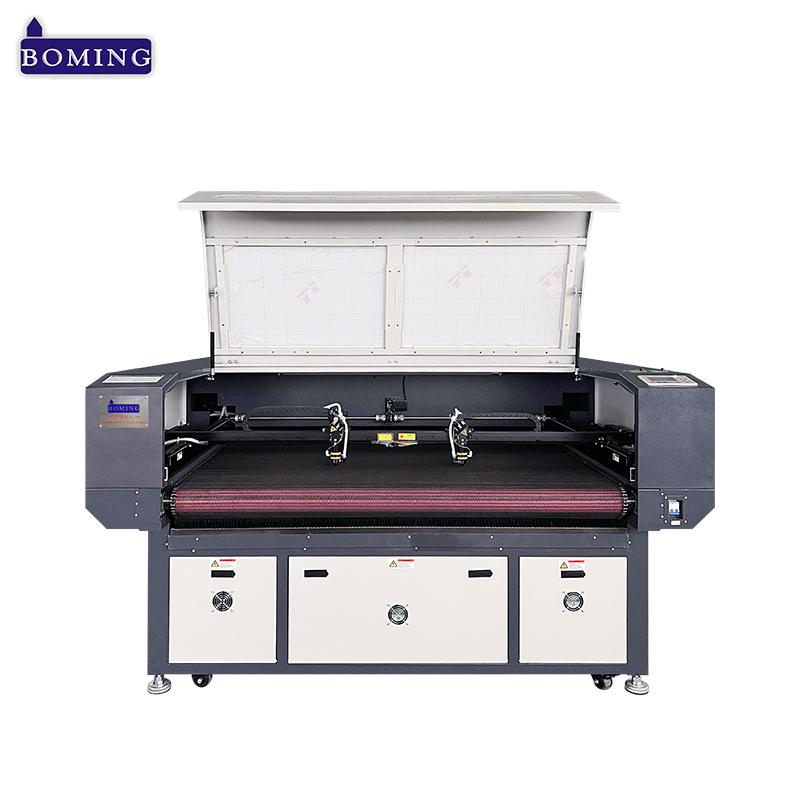

Machine pictures: of auto feeding laser cutting machine price
Features: of cnc auto feeding fabric cutting machine
1、It feeds the materials fully automatically, the worker can operate several machines at the same time.
2、The follow-up rolling platform is developed indepently, cutting 2-6 layers according to different materials.It can achieve
more accurate, higher speed, higher efficiency cutting comparing the normal auto feeding machine
3、Choosing the 150W-180W big capacity laser tube can make the machine achieving fast stable and continous cutting in 24 hours.

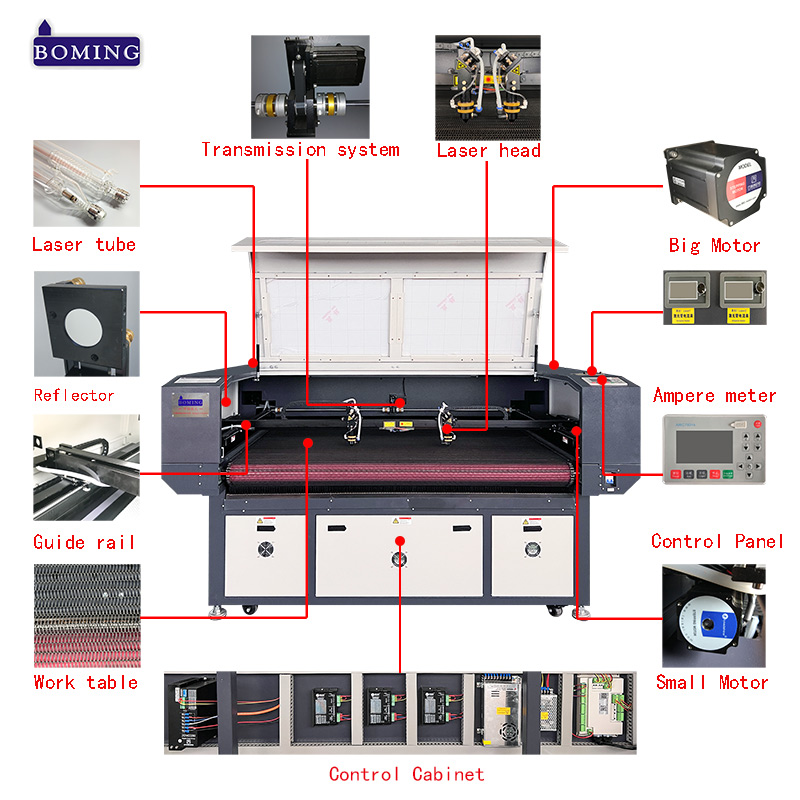

Configuration: of 300watt laser machine
1）Motor: Three phase subdivision step motor and driving system from LEADSHINE.
2）LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.
3）Optional: 60-80-100-130-150W-180W laser tube.
4）Honeycomb plate/ Square bottom plate/blade strip plate
5）Outward sliding guide rail, inward sliding guide rail, integrated frame structure
6）Original laser mirror from II-VI INFRARED, USA, adjustable laser head
7）Imported type original transmission belt(Tank chain).
8）Centrifugal fan.
9）Three protection function: safety protection, filter protection, water protection.
10）Optional: Automatic circulation cooling water tank.
11）Give freely compressed magnetic pump.
12）Give freely Boming copyrighted software 1set, free upgrade
Applicable Industries: of 300w co2 laser cutting machine
The machine is widely used in the industries such as shoe,bag, garment,toy,furniture, advertisement,car accessories,sports Accessories,etc.
Applicable Materials: of laser machine cutting clothing
Suitable for the materials, such as plush,fur,paper board,insole,PU,cloth,microfiber leather,
microfiber PU,etc.
Technical Parameters:of fabric laser cutting machine auto feeding
Laser Capacity | 100W 130W 150W CO2 glass tube |
Processing Area(mm) | 1600*1000 1600*1200 1600*1400 1800*1000 1800*1200 1800*1400 1800*1600 2000*1000 2000*1200 2000*1400mm |
Positional Accuracy | ±0.05mm |
Working way | Auto feeing |
Cutting Speed | 0-60m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Using Attention:
1) Open the industrial chiller and add pure water before the machine starts running.
2) The working temperature should be over 5°C, avoiding water freezing, the frost will crack the laser tube.
3) When the machine working, it is strictly prohibited to lean into the working area to avoid burning.
4) The machine must be kept flat to avoid tilting.
5) When the machine working, it must be with personnel, avoid fire.
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory manufacturing laser machine and we provide perfect after-sale service.
Q: How can I know your machine work well?
A: Before delivery, we do test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: Usually we accept T/T，Irrevocable L/C at sight or cash.
Q: Do you have a certificate?
A: For every model of machine, it has a CE, FCC, FDA, ROHS certificate.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
