1000W Handheld laser welding machine

1000W Handheld laser welding machine enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses without distortion, undercut or burn-through.

The heat affected zone is dramatically minimized, as is the need for traditional post-processing grinding or polishing for increased productivity, less scrap and lower cost-per-part.

Item NO.:
SL-SC1000W/1500W
Order(MOQ):
1
Payment:
TT, LC at sight, DP, DA
Product Origin:
Quanzhou, China
Shipping Port:
Ximen, China
Lead Time：
10-15 days

share to:

Inquiry now

Product Detail

1000W Handheld laser welding machine adopts the latest generation of fiber laser machine, which has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables. It can be welded on metal materials such as thin stainless steel plate, iron plate and galvanized plate. Perfectly replace traditional argon arc welding, spot welding and other processes.

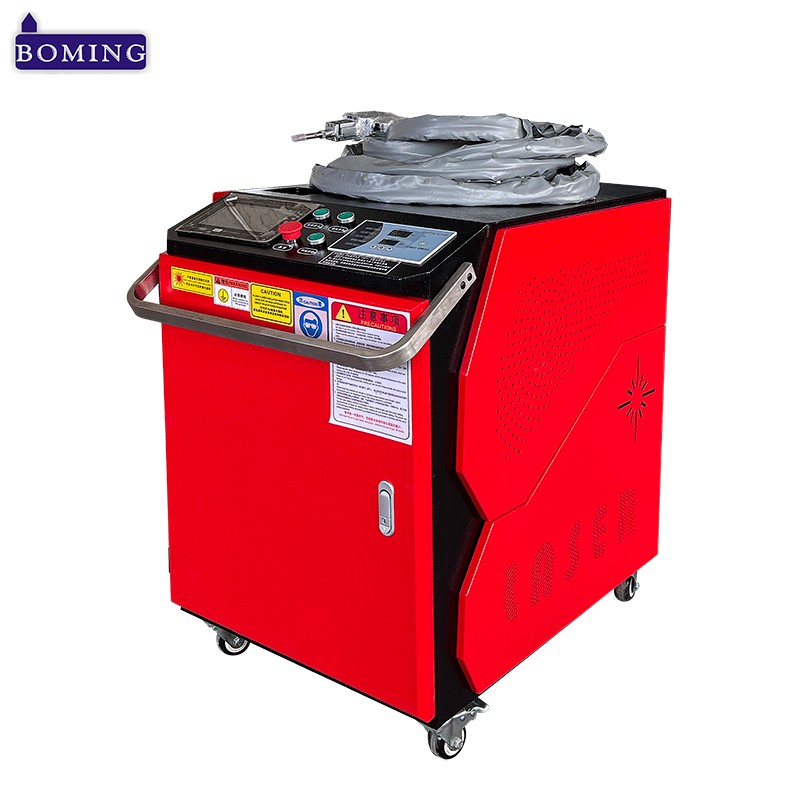

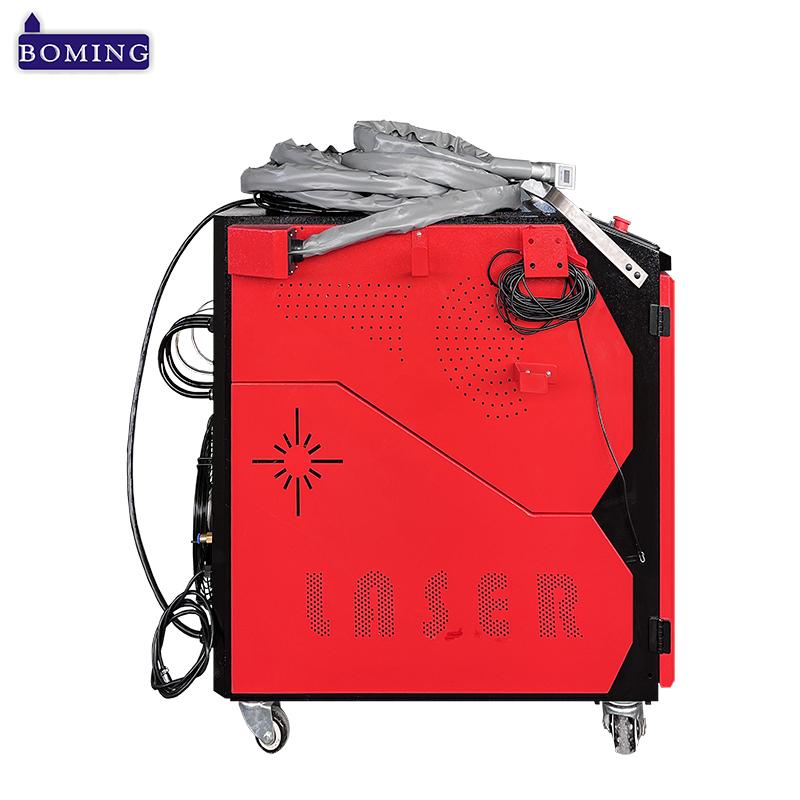

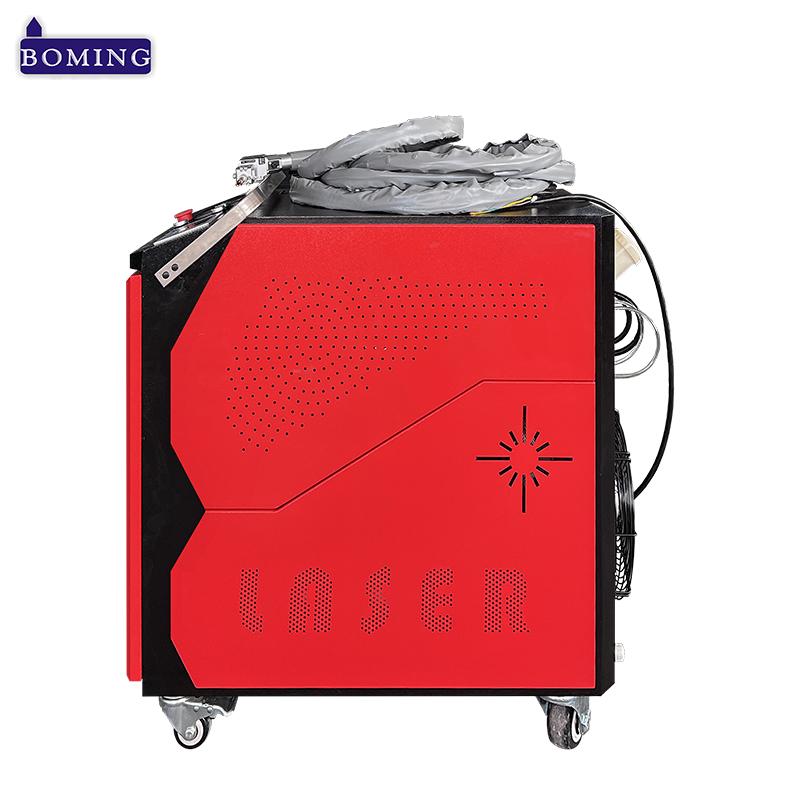

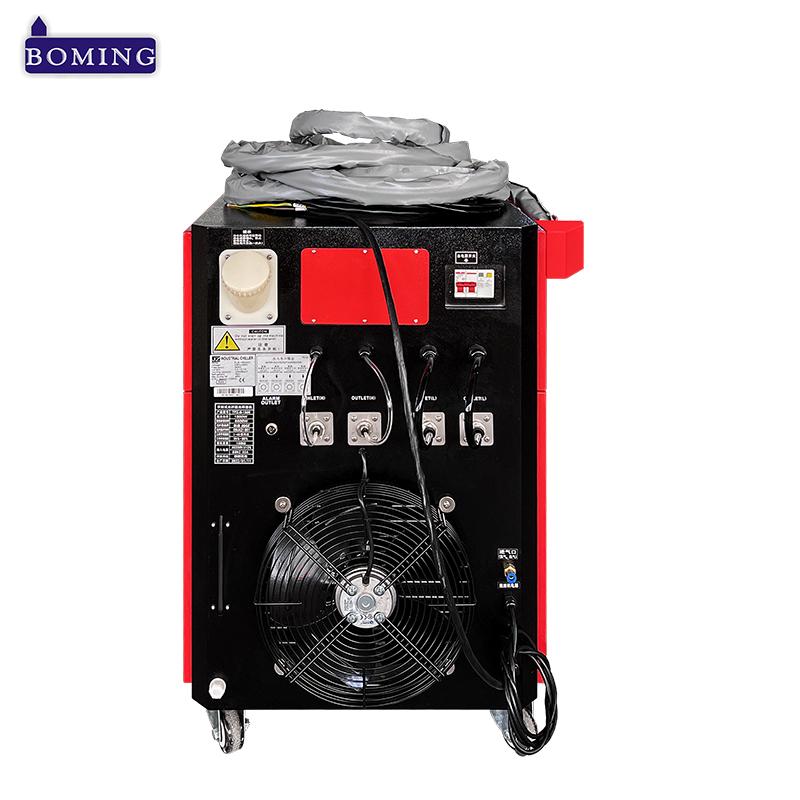

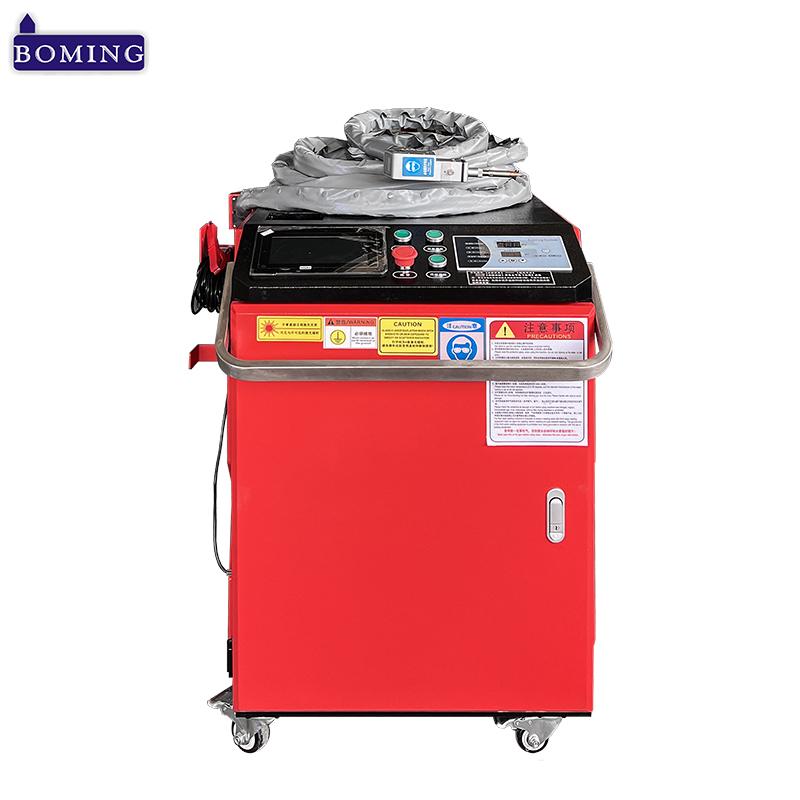

Machine pictures:

stainless laser welding machine

Laser beam welding machine

mould laser welding machine

China laser welding machine

Features:of Fiber Laser Marking Machine

1、High Speed: Up to 4X Faster than traditional methods - increased productivity for lower costs-per-part;

2、High Quality: Consistent welding of thick, thin and reflective metals without distortion, undercut or

burn-through - minimal heat affected zone;

3、Easy to Use: Simple set up, easy to learn and operate for consistent high-quality welds;

4、Enhanced Material Capability: Metals with dissimilar thicknesses, ultra-thin parts, copper welding, materials with low and high electrical conductivity;

5、Wobble welding: Up to 5 mm of additional weld width - increases capability and creates highly aesthetic seams;

6、Operator safety: Multi-level sensors and interlock safety features.

Advantage: of 20w Fiber Laser Marking Machine

the Laser welding is to irradiate a high energy density laser beam on two parts of the material, melt the material and then cooling and solidification into one. Compared with traditional welding technology, the Auto wire feeding hand held laser welding has the following advantages:

1、The weld seam is smoothe and beautiful, it doesnot need to be polished or the workboard of the polish is very small;

2、Through control the laser energy, the welding will not defrom or very few deformation;

3、Handheld laser welding machine is easy to handle and needn't to require the professional welders;

4、The wobble welding machine can handle the hard welding material easily, such as aluminum, brass;

5、Long life span up to 100,000 hours and low comsumption;

6、The Auto wire feeding handheld welding machine can weld parts with wider gap;

7、With a 8-15m fiber line, It can weld long-distance and large- area parts;

8、Various welding processes, such as spot welding, seam welding and overlap welding;

9、The welding efficiency is around 5 times of TIG welding;

10、It is welding used in electronics, sheet metal, air condiction industry etc.

Applicable Industries:of metal laser marking machine

Laser welding technology and laser welding machine are widely used in sheet metal processing, tool processing, rail transit, automobiles, electrical manufacturing, elevator manufacturing, decorative advertising , construction machinery, agricultural and forestry machinery, petroleum machinery, food machinery, household appliances, kitchen cabinets, kitchenware and bathroom, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel homes,Laser processing services, etc. and other industries,

Applicable Materials: of 50w fiber Laser marking Machine

Aluminum，Stainless Steel, Carbon Steel，Copper，Silver, Titanium, Tin.

Technical Parameters:of 20w 30w metal fiber laser marking machine

Technical Parameters
Laser	Max, Reci, Raycus
Laser Capacity	1000w 1500W 2000W
Laser wave length	1064nm
Fiber core diameter	50um
Cable length	10m
Laser working mode	Continuous / Modulation
Welding speed	0-120mm/s
Refrigeration unit	Intelligent dual temperature chiller
Working environment temperature range	15-35℃
Humidity range of working environment	＜ 70% non-condensing
Welding material thickness	0≤4.5mm
Welding gap requirements	＜0.5mm
Operating environment	Clean, without dust or less dust
Total power	≤6500W
Power supply	AC220/380V±10%,50HZ
Cooling way	Water cooling
Laser pulse Frequency	1-5000Hz/ 50kHz
Spot size(mm)	0-4mm

Sample show:


FAQ:

Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.

Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.

Q3. How to install and use it?

We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.

Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.

Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.

Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.

Our Service:

1. 1 year Guarantee for the whole machine;

2. 12 months Guarantee and free spare parts supply during this period;

3. 24 hours online service;

4. 7-10 days lead time;

5. We will provide the Instruction Book, Operational manual and Training Video;

6. Provide technical support for the whole lifetime on line;

7. Shipping By air, land, Sea.

Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.
