9060 Water cooling 300Watt camera laser cutter machine is with big camera on top, suitable for cutting the printed fabric pattern, embroidered textile,solar cell, textile, garment, cloth, woven label, etc. Without making drawing in advance. After scanning the pattern, the pattern can be transfered into computer automatically(for big camera). Also can make a pattern model to match the printed pattern, laser head can cut according to the pattern(for samll camera).
Item NO.:
FLG-9060 1280 1390Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
9060 Water cooling 300Watt camera laser cutter machine is with big camera on top，the camera can scan the fabric printed pattern and send pattern to the computer, you can do a little adjustment to the pattern in laser software. Don't need to make the pattern drawing in advance. Save time and make the work simple. Also can make a model in laser software to match the printed patter, the laser head can cut according to the model.

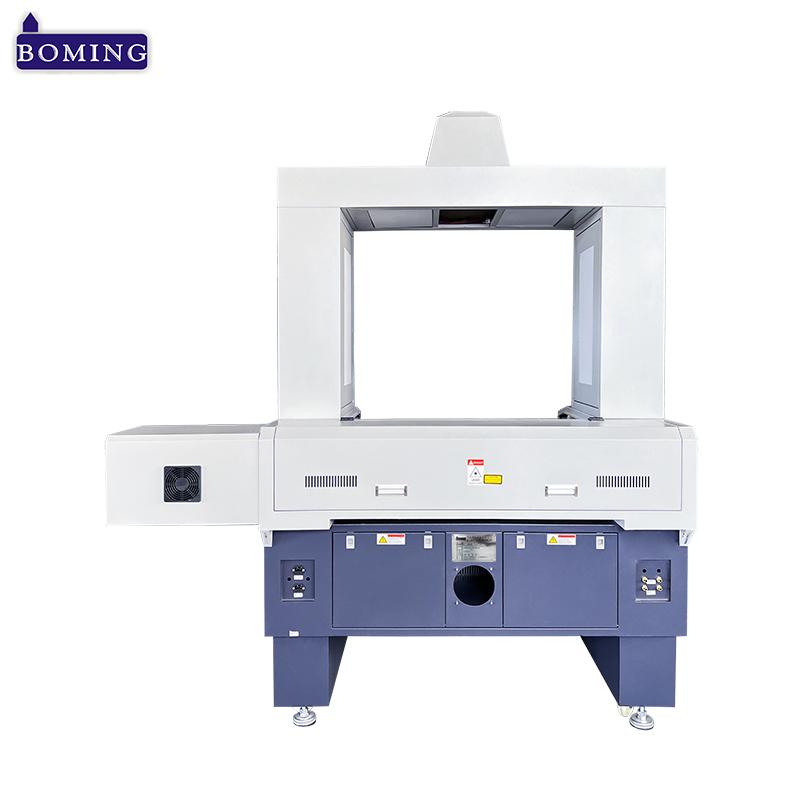

Machine pictures: of ccd camera laser cutting machine for sale
Features: of laser ccd camera
1、It can handle any shape, whether it is round, square, digging, trapezoid, irregular, etc.
2、 It can handle multiple shapes and sizes of the same layout at one time, and can position and cut with high precision.
3、High efficiency, one machine can replace 3-5 workers.
4、With 24.1 mega pixels camera/1.5 mega pixels ccd camera and self-developed fully automatic identification system, it is simple to operate, more intelligent, efficient and energy-saving.
5、To undertake various customized models.
Configuration: of ccd camera laser machine
1）Motor: Three phase subdivision step motor and driving system from LEADSHINE.
2）LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.
3）Optional: 60-80-100-130-150W-180W-300W-450W-600W laser tube.
4）Honeycomb / Square /blade /Auto feeding table.
5）Outward sliding guide rail, inward sliding guide rail, Leas screw guide rail, integrated frame structure.
6）Original laser mirror from II-VI INFRARED, USA, adjustable laser head
7）Imported type original transmission belt(Tank chain).
8）Centrifugal fan.
9）Three protection function: safety protection, filter protection, water protection.
10）Automatic circulation cooling water chiller.
11）Give freely compressed air pump.
12）Give freely Laser software 1set, free upgrade
Boming Advantage: of label laser cut machine
Applicable Industries: of laser cut portrait
Suitable for the precision cutting of pattern in the industries such as print fabric、all kinds of embroidery、Rapier woven、 labels、irregular trademark、garment、printing, etc.
Applicable Materials: of laser cutting machine for patterns
Solar cell, printed fabric, garment, embroidered textile,cloth, PET, plastic, wood board, organic craft, leather, PVC, acrylic and other non-metallic materials.， etc.
Technical Parameters: of printed fabric laser cutting machine price
Laser Capacity | 100W 130W 150W CO2 glass tube |
Processing Area(mm) | 900*600 1200*800 1300*900 1300*1300mm 1600*800 1600*1000 1600*1200 1600*1400 1800*1000 1800*1200 1800*1400 1800*1600mm |
Positional Accuracy | ±0.05mm |
Camera resolution | 24.1 mega-pixel |
Cutting Speed | 0-60m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Purchase process:
Our Payment:
1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.
2) 30% deposit, the70% balance should be paid clear before delivery.
3) The delivery day is 5-7 working days.
4) The MOQ is 1set.
Why Choose Us:
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
