Customized 150W lift table table co2 laser engraver is with up and down table, suitable for cutting and engraving non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、rubber、stone、granite、gemstone、handcraft、etc. Rotary device is optional. It can be customized for the working table and lifting range. Lead screw guide rail is optional for precision cutting.
Item NO.:
FLG-6040 9060 1280Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
Customized 150W lift table table co2 laser engraver is with up and down working table, suitable for cutting and engraving different materials. Different size of working table is optional. Differenct number of laser head can be chosen. The up and down table can be lifted sapce about 200mm from up to down. Also can be customized for special using.

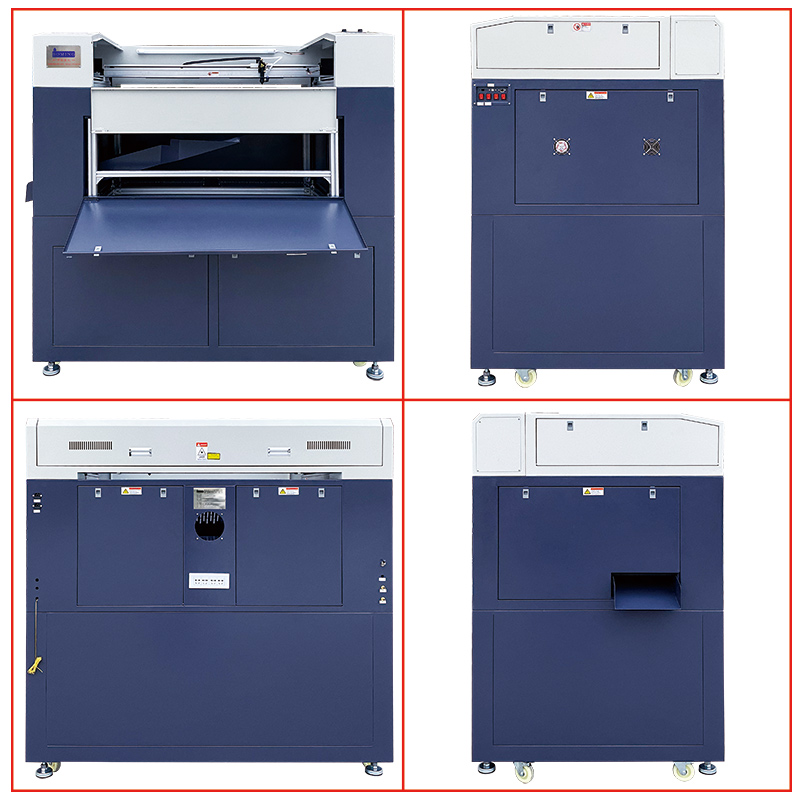

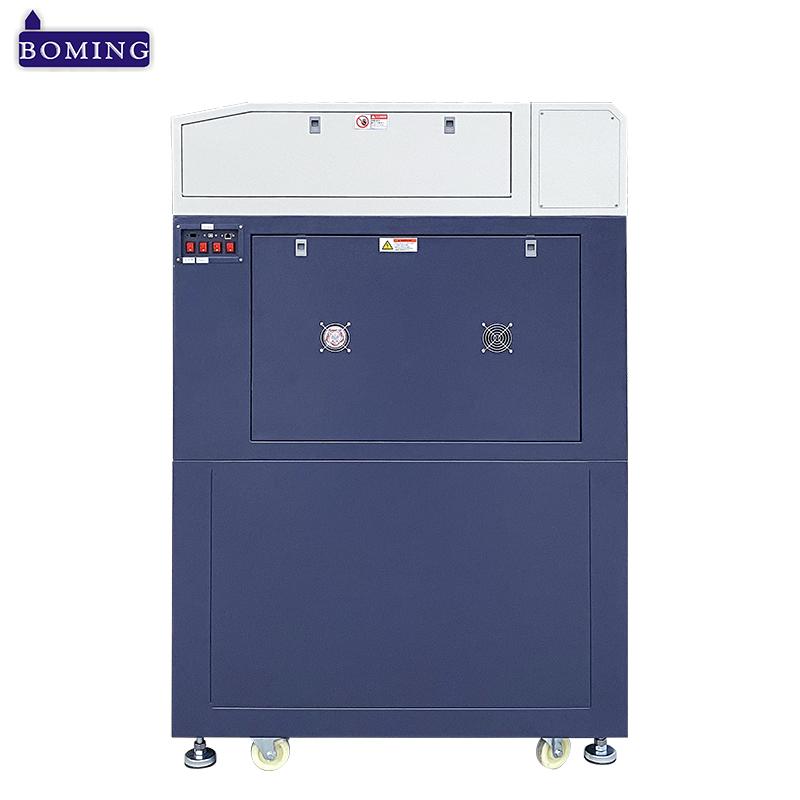

Machine Pictures: of co2 laser machine for sale
Features:of diode laser cutting and engraving
1、The design of lifting platform meets the requirement of processing thick materials.
2、The straight-through type design of front side and back side is suitable for processing long materials.
3、The worktable is equipped with the lifting platform drove by electricity. The customer can choose auto focus system to achieve precise automatic focus.
4、The sealed air-bleed system thoroughly solves the problem of exhaust emission during the laser processing and meets the requirement of air exhaust.
5、Choosing the 3 phrase mixed stepping motor driving system can make sure that the machine work smoothly with smooth cut and exact size. The adjustable balanced guide rail ensure that the laser machine can work long time and precisely.
Machine Advantage: of co2 laser machine price in pakistan
1) High precision, High stability, Fast speed
2) Low consumption
3) Strong and durable frame, Long life
4) Imported guide rail and transmission belt
5) Imported reflector and focus lens
6) Stepping motor and driving system
7) Advanced copyrighted software
8) Excellent cooling system
9) LED realtime display
10) DSP intelligent main board
Applicable Industries:of co2 laser wood engraving
Advertising industry, decorative industry, crafts gift industry, electronics and electrical appliances industries, electric appliances, model industry (construction model, navigation model, wooden toys) etc.
Applicable Materials: of craft laser engraver
Acrylic, wooden planks, bamboo products, color plates, fabrics,paper, leather, shellfish, coconut shell, horn, resin, animal skin, ABS boards,lamp,plywood, rubber, marble, wood, plastic, wpc, EVA, PVC, stone, ceramics, gemstone, granite, and other nonmetal materials.
Technical Parameters:of custom design laser cutting
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000mm (can by customized) |
Positional Accuracy | ±0.05mm |
Lift range | ＜200mm (can by customized) |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory manufacturing laser machine and we provide perfect after-sale service.
Q: How can I know your machine work well?
A: Before delivery, we do test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: Usually we accept T/T，Irrevocable L/C at sight or cash.
Q: Do you have certificate?
A: For every model of machine, it has a CE, FCC, FDA, ROHS certificate.
Our Service:
1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
Customer factory:
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
