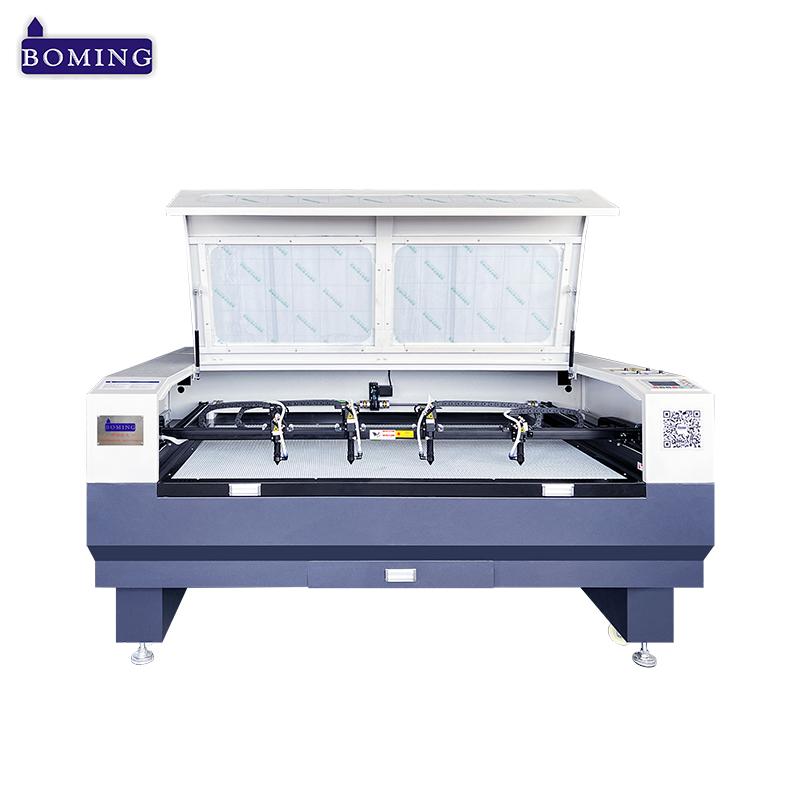

4 separate Head 1610 laser cut machine for TPU is with blade/honeycomb/Square table and 4 separate head, every laser head can separate automatically according the drawing when needed, suitable for cutting non metal materials, such as TPU、acrylic、wood、 MDF、plywood、bamboo、crafts、leather、paper、fabric、cloth、garment，etc. Also can engrave rubber、stone、granite、gemstone、handcraft、wood etc.. One head、two head、four head and six head are optional.
Item NO.:
FLG-1610 1810 2010Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
4 separate Head 1610 laser cut machine for TPU is with 4 auto head, it can separate every laser head automatically when needed, can save the materials, suitable for TPU, fabric, leather, wood, etc.

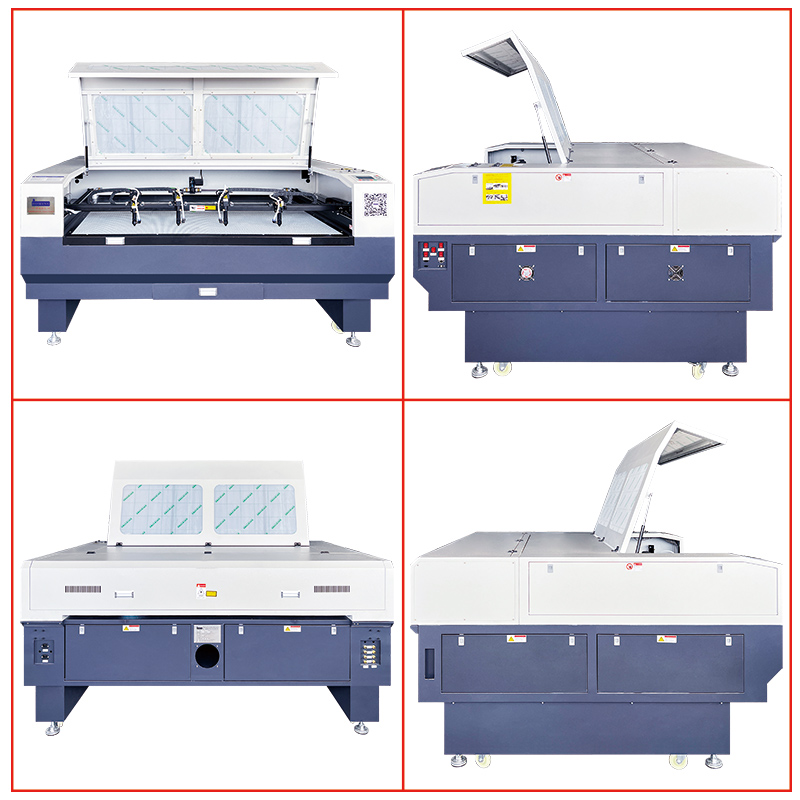

Machine Pictues: of 4 head laser cutter
Features:of 4 head laser engraving machine
1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.
2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.
3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.
4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.
5、The customized maehines with different size are available.
Configuration: of co2 laser cutting machine1610
1）Motor: Three phase subdivision step motor and driving system from LEADSHINE.
2）LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.
3）Optional: 60-80-100-130-150W-180W-300W-450W-600W laser tube.
4）Honeycomb / Square /blade /Auto feeding table.
5）Outward sliding guide rail, inward sliding guide rail, Leas screw guide rail, integrated frame structure.
6）Original laser mirror from II-VI INFRARED, USA, adjustable laser head
7）Imported type original transmission belt(Tank chain).
8）Centrifugal fan.
9）Three protection function: safety protection, filter protection, water protection.
10）Automatic circulation cooling water chiller.
11）Give freely compressed air pump.
12）Give freely Laser software 1set, free upgrade
Applicable Industries:of co2 laser engrave machine
TPU、Garment, shoes, bags, compute rized embroidery and clipping.model cutting, electronics ,toys, furniture, advertisement decorations, handicraft, packing, printing and other industries.
Applicable Materials: of textile laser cutting machine price
Nonmetal materials like TPU、garment、leather, cloth, plexiglass, acrylic, rubber, plastic, wooden product, bamboo product, ceramic, paper, cloth, fabric, textile, foam, felt, etc.
Technical Parameters:of funiversal laser cutter for sale
Laser Capacity | 60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube |
Processing Area(mm) | 600*400 900*600 1000*800 1200*800 1200*900 1200*1000 1300*900 1300*1000 1400*800 1400*900 1400*1000 1500*600 1500*900 1600*800 1600*1000 1800*1000 2000*1000mm |
Positional Accuracy | ±0.05mm |
Working table | Blade/honeycomb/Square |
Cutting Speed | 0-36m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Our Payment:
1) Usually we accept T/T, Irrevocable L/C at sight or Alibaba Trade Assurance Order.
2) 30% deposit, the70% balance should be paid clear before delivery.
3) The delivery day is 5-7 working days.
4) The MOQ is 1set.
Our Service:
1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.

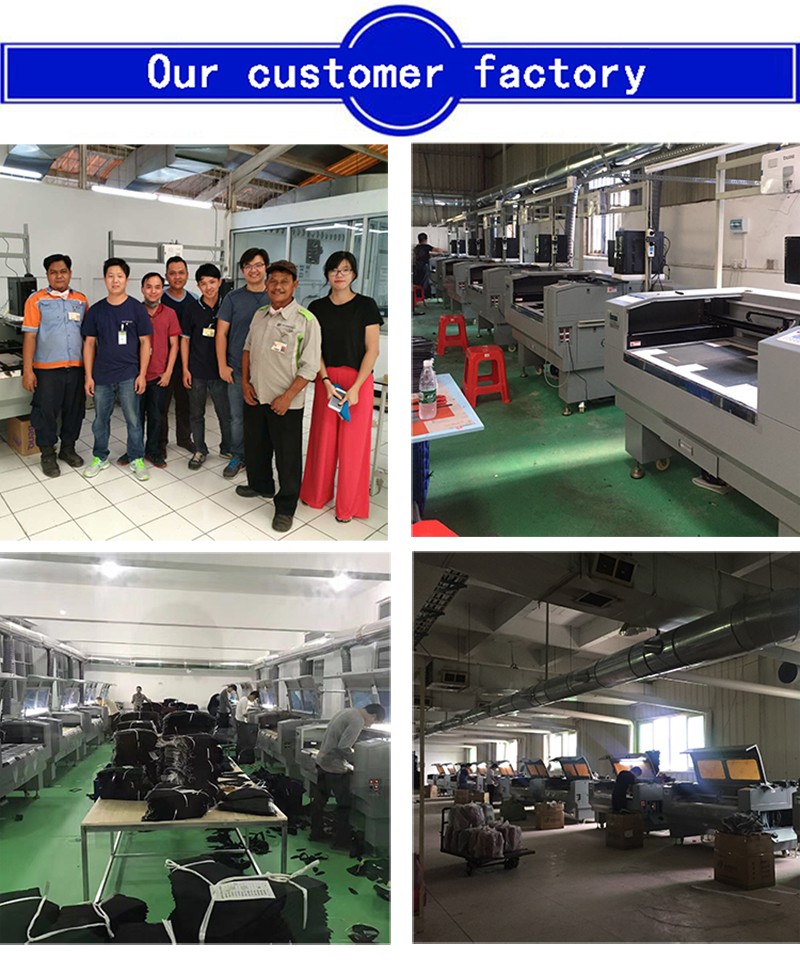

Customer factory:
Fair show:
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
