1680 4 head up down table laser engrave machine

1680 4 head up down table laser engrave machine is with up and down table, suitable for cutting and engraving non metal materials, such as acrylic、wood、 MDF、plywood、bamboo、crafts、rubber、stone、granite、gemstone、handcraft、etc. One head、two head、four head and six head are optional.Rotary device is optional. The lift range is about 250mm.

  • Item NO.:

    FLG-9060 1390 1610
  • Order(MOQ):

    1
  • Payment:

    TT, LC at sight, DP, DA
  • Product Origin:

    Quanzhou, China
  • Shipping Port:

    Ximen, China
  • Lead Time:

    10-15 days

0086-18815980123  0086-13599259031  Boming laser


1680 4 head up down table laser engrave machine is with up and down working table, suitable for cutting and engraving thick materials. Different size of working table is optional. Differenct number of laser head can be chosen.

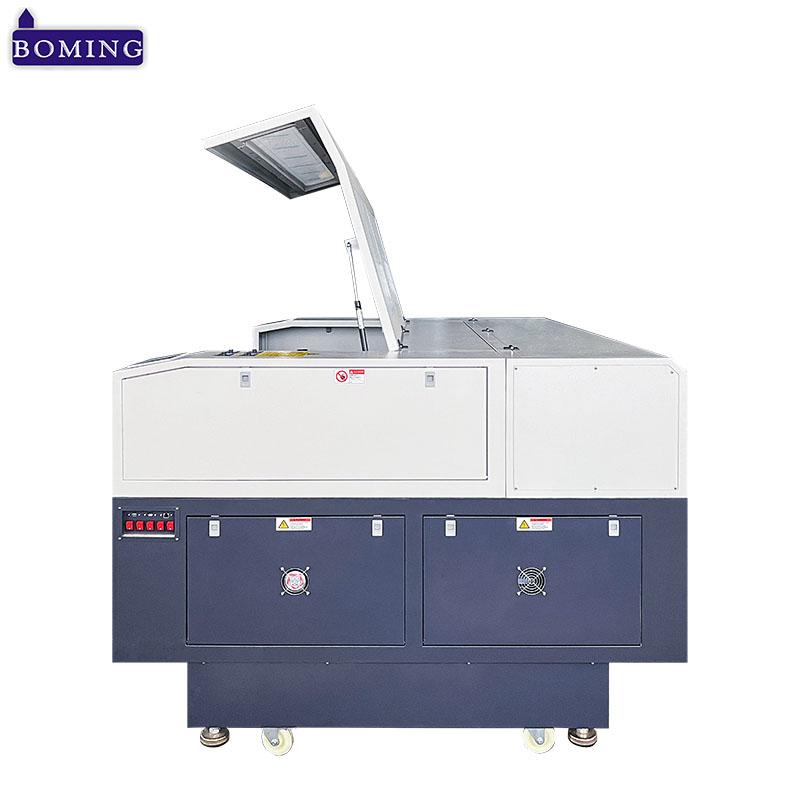

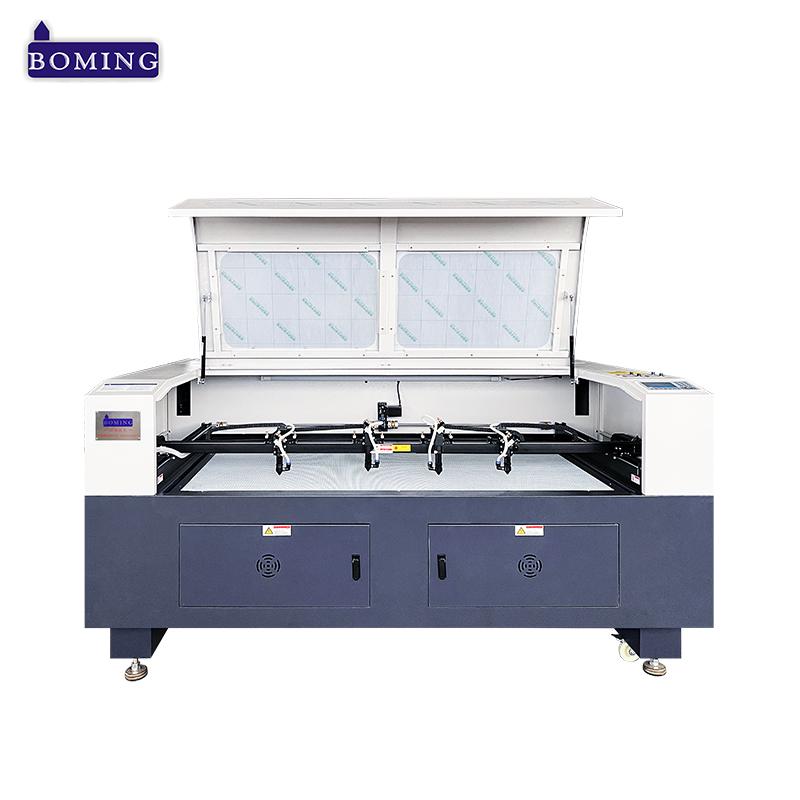

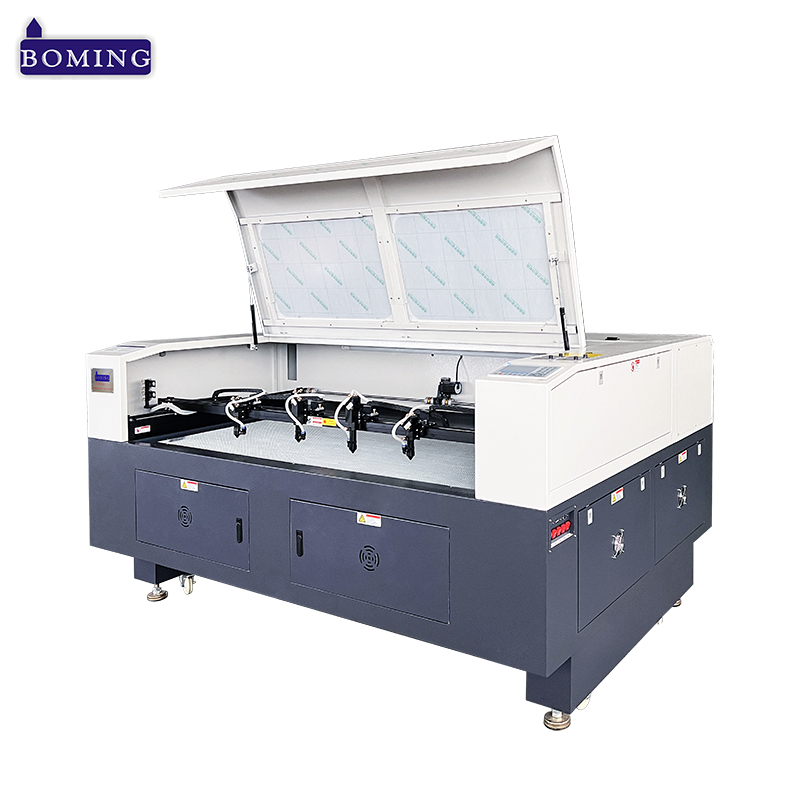

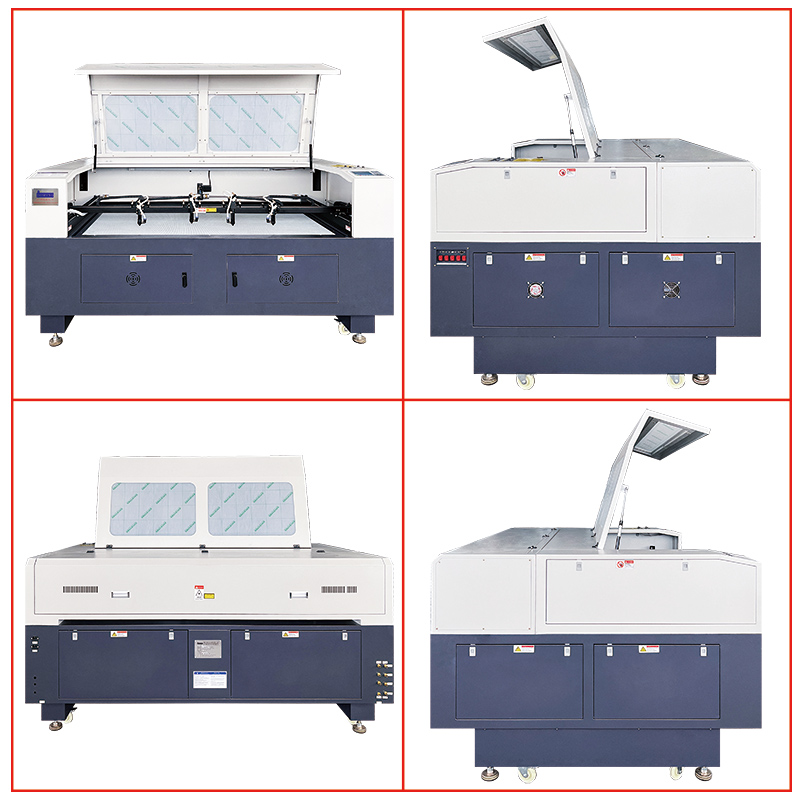

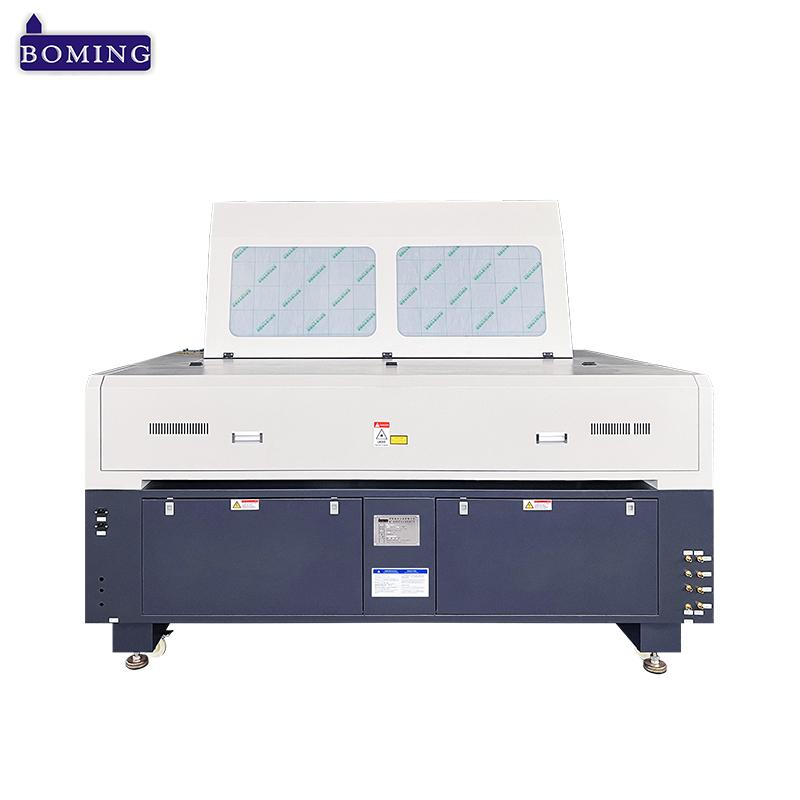

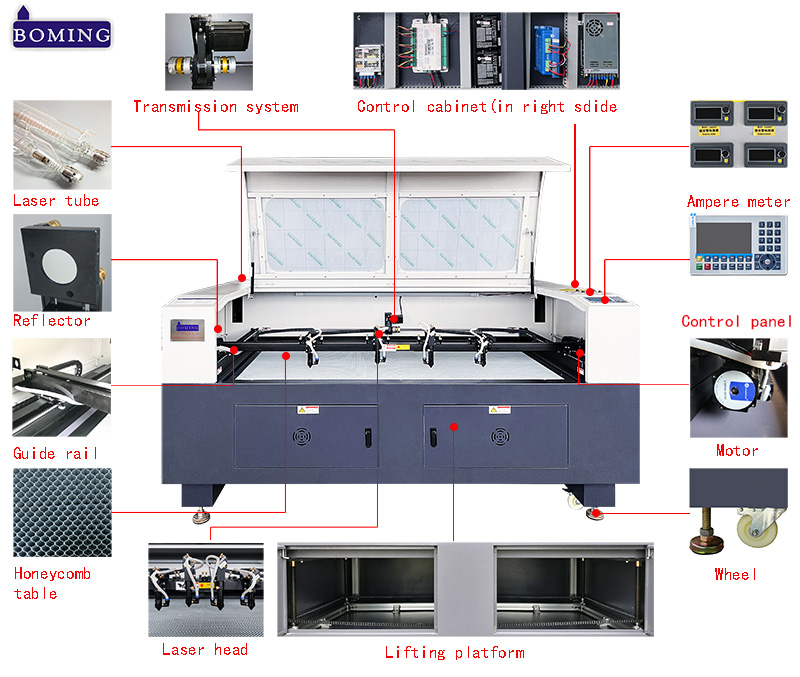

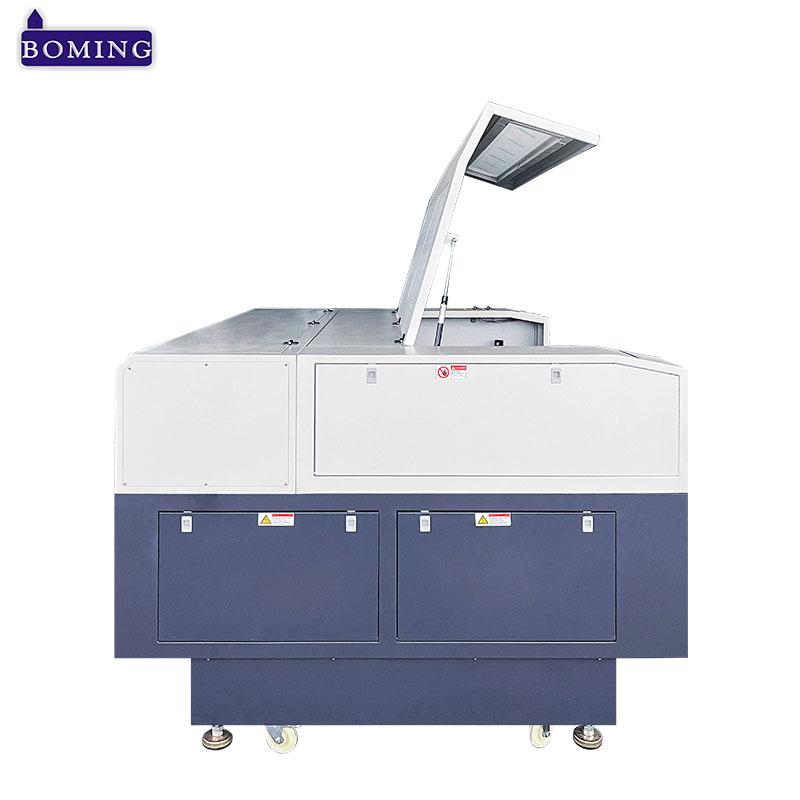

Machine Pictures: of 100 watt co2 laser

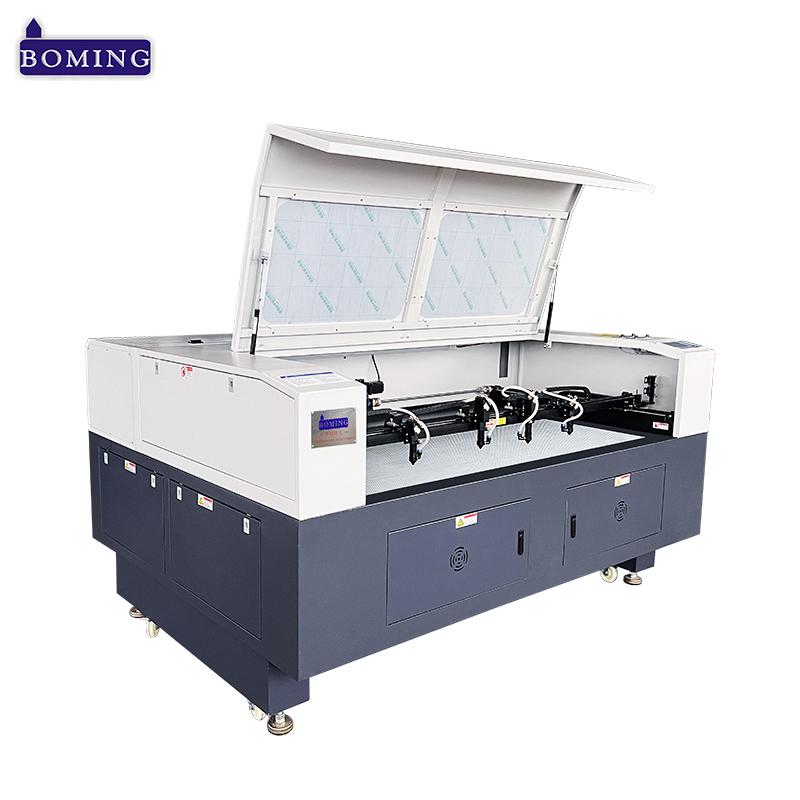

4 heads laser cutter 150w

80w co2 laser engraver and cutter

80w laser engraving and cutting machine

acrylic and wood laser cutting machine




Features:of 100w chinese laser cuttering machine

1、The design of lifting platform meets the requirement of processing thick materials.

2、The straight-through type design of front side and back side is suitable for processing  long materials.

3、The worktable is equipped with the lifting platform drove by electricity. The customer can choose auto focus system to achieve precise automatic focus.

4、The sealed air-bleed system thoroughly solves the problem of exhaust emission during the laser processing and meets the requirement of air exhaust.

5、Choosing the 3 phrase mixed stepping motor driving system can make sure that the machine work smoothly with smooth cut and exact size. The adjustable balanced guide rail ensure that the laser machine can work long time and precisely.



Configuration: of 100w chinese laser cutter

1)Motor: Three phase subdivision step motor and driving system from LEADSHINE.

2)LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.

3)Optional: 60-80-100-130-150W-180W-300W-450W-600W laser tube.

4)Honeycomb / Square /blade /Auto feeding table.

5)Outward sliding guide rail, inward sliding guide rail, Leas screw guide rail, integrated frame structure.

6)Original laser mirror from  II-VI INFRARED, USA, adjustable laser head

7)Imported type original transmission belt(Tank chain).

8)Centrifugal fan.

9)Three protection function: safety protection, filter protection, water protection.

10)Automatic circulation cooling water chiller.

11)Give freely compressed air pump.

12)Give freely Laser software 1set, free upgrade






Applicable Industries:of 100w laser engraver ruida

Advertising industry, decorative industry, crafts gift industry, electronics and electrical appliances industries, electric appliances, model industry (construction model, navigation model, wooden toys) etc.




Applicable Materials: of 130w laser cutting and engraving machine

Acrylic, wooden planks, bamboo products, color plates, fabrics,paper leather, shellfish, coconut shell, horn, resin, animal skin, ABS boards,lamp,plywood, rubber,stone, ceramics,gemstone,granite, and other nonmetal materials.




Technical Parameters:of 150watt laser engraver

Laser Capacity

60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube

Processing Area(mm)

600*400 900*600 1000*800 1200*800 1300*900 1400*800 1500*600 1500*900 1600*800 1600*1000mm

Positional Accuracy

±0.05mm

Lift range

<200mm

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror




Sample show:

arts and crafts gifts laser engraving

wood laser engraving machine

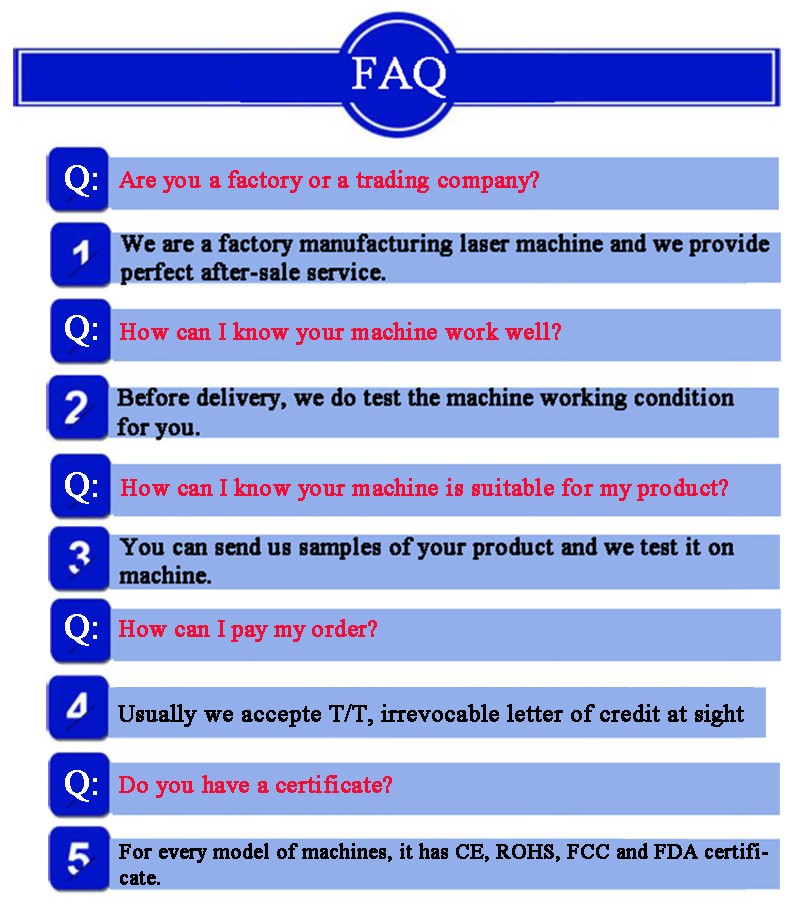

FAQ:





Why choose us:


why choose us(boming).jpg





Packaging & Shipping:

1) Standard seaworthy plywood case, without fumigation, can be exported directly.

2) Forklift-lift loading, much safer for machine.

3) We will arrange telex release for you or send original BL to you for customs clearance.

co2 laser engraver


Our contact:

Martin名片(新) 拷贝.jpg
