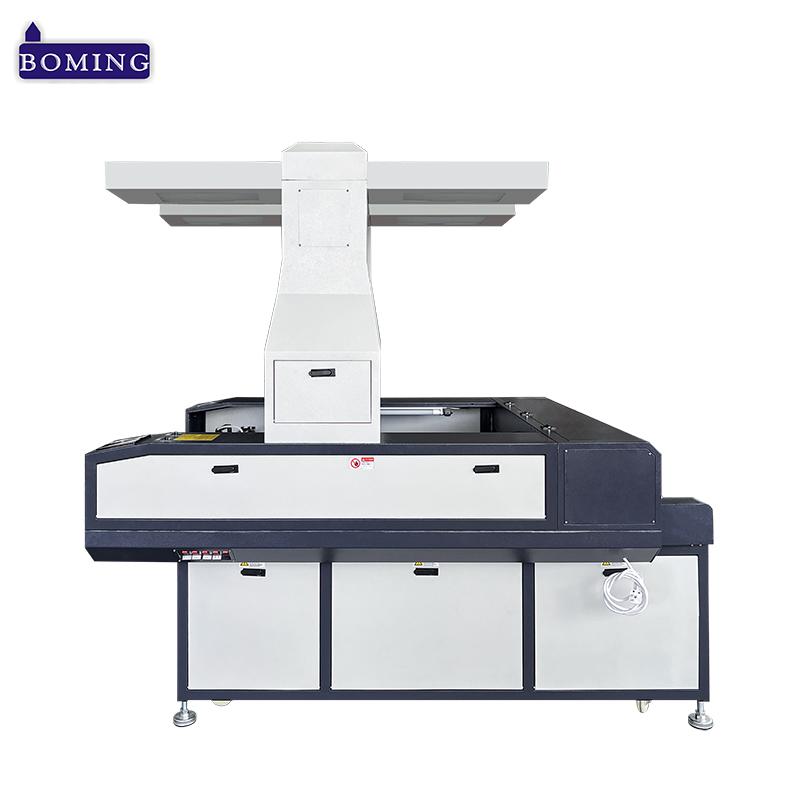

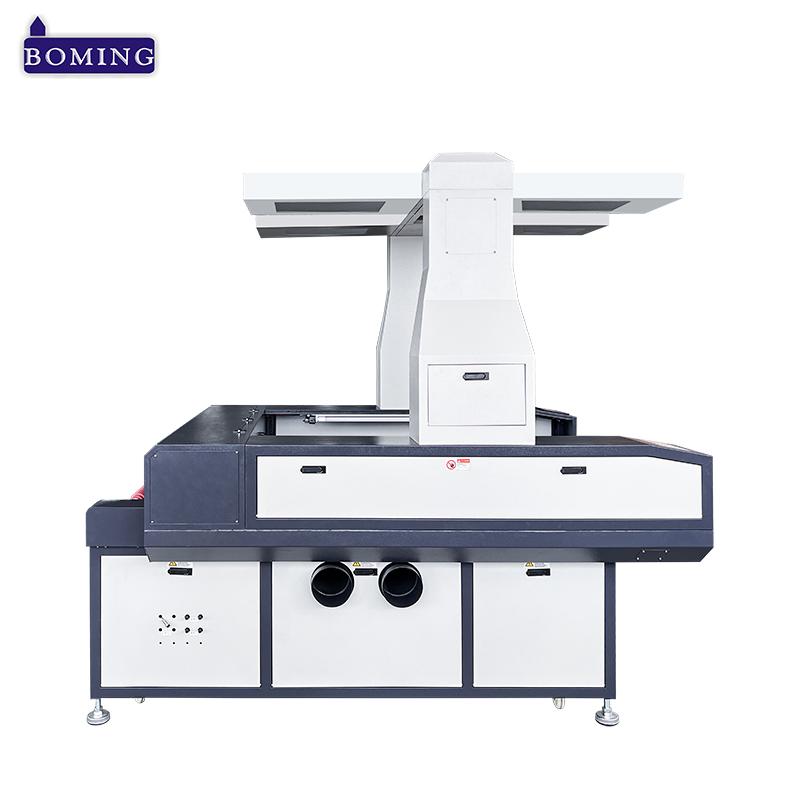

1012 clothes vision camera laser cut machine is with big camera on top, suitable for cutting the pattern contour of printed fabric pattern, embroidered textile, cloth, garment, clothes, woven label, etc. Without making drawing in advance. After scanning the pattern, the pattern can be transfered into computer automatically. You can adjust the contour lines on the laser software.
Item NO.:
FLG-1012 1610 1812Order(MOQ):
1Payment:
TT, LC at sight, DP, DAProduct Origin:
Quanzhou, ChinaShipping Port:
Ximen, ChinaLead Time：
10-15 daysshare to:
1012 clothes vision camera laser cut machine is with big camera on top, the camera can scan the fabric printed pattern and send pattern to the computer, you can do a little adjustment to the pattern in laser software. Don't need to make the pattern drawing in advance. Save time and make the work simple. It also can cut the pattern by making a pattern model to match the printed pattern, working like the small camera. If works without using camera, it can cut as the normal laser cutting machine.

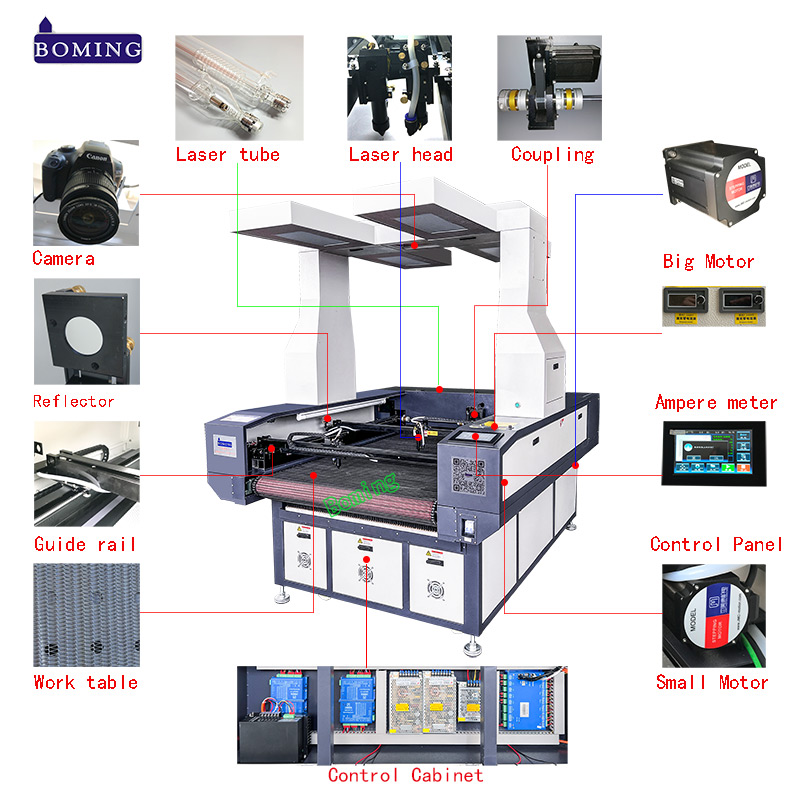

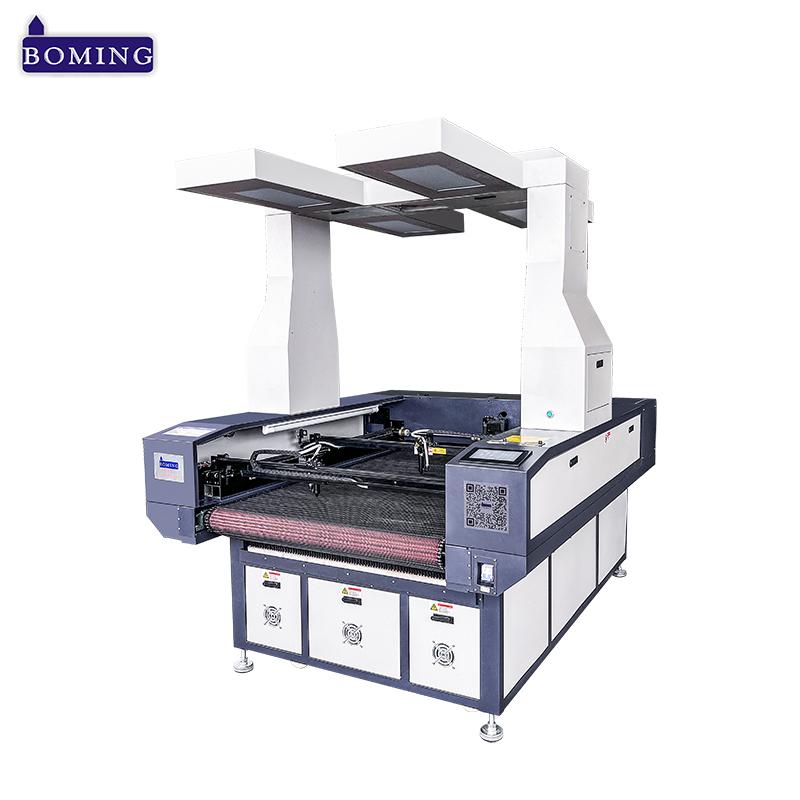

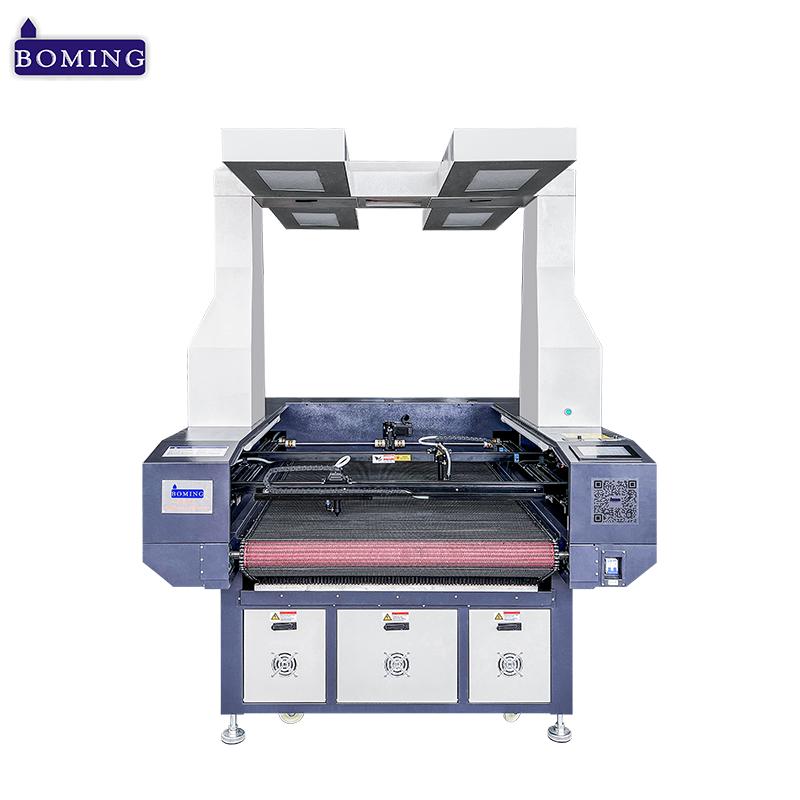

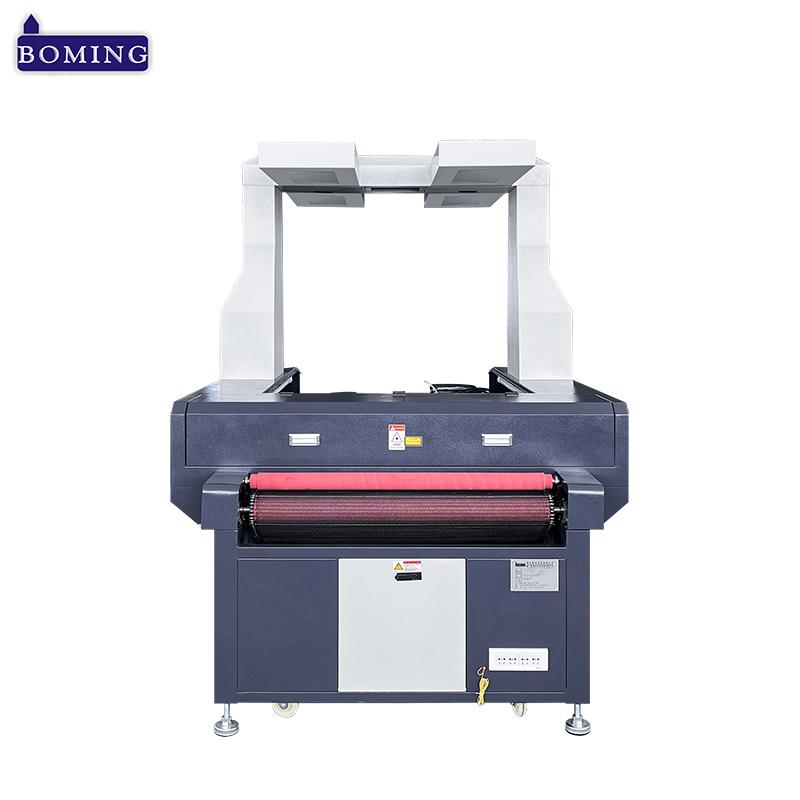

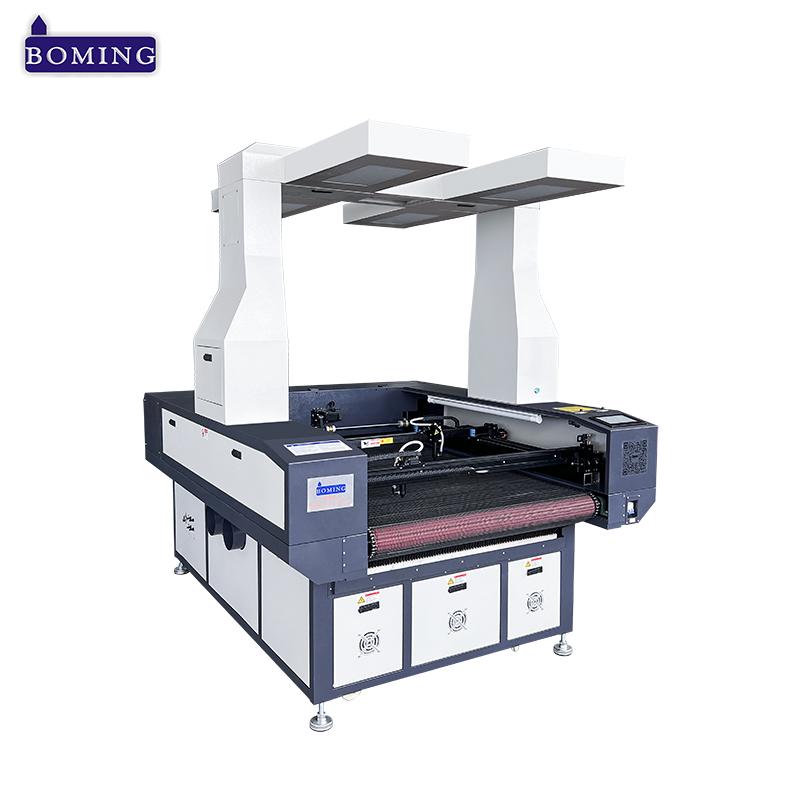

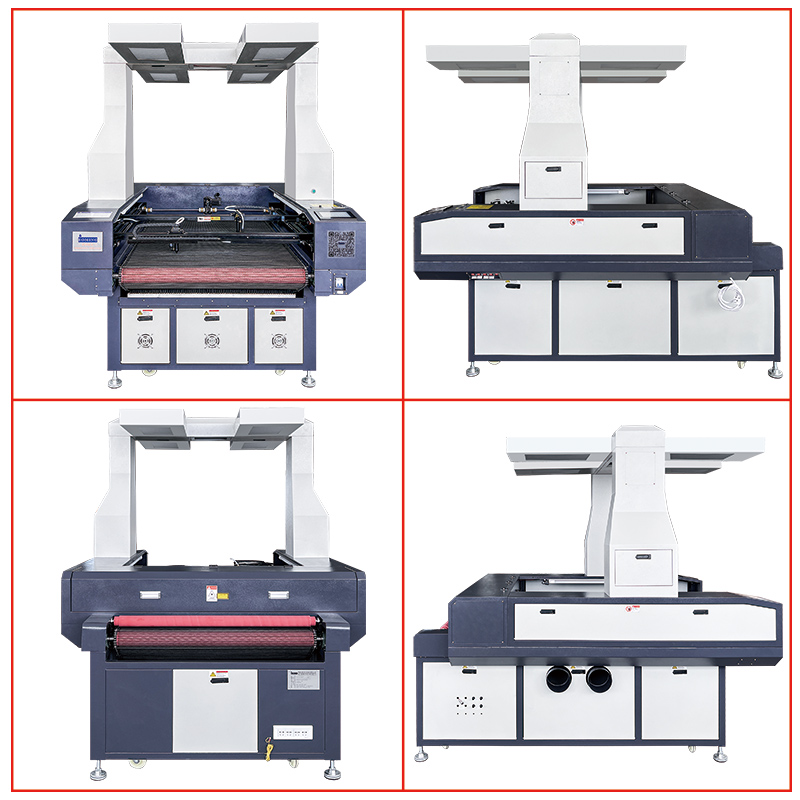

Machine Pictures: of embossing camera laser cutting machine
Features: of fabric laser cutting machine camera autofeed
1、We use high definition camera which effective pixels is 24.1 mega to achieve high precision imaging (The higher pixels are continuously updated).
2、The effective working area is several times compared the former laser machine but maintaining the same accuracy.
3、The oversize image can solve the problem of error and image degradation caused by mosaic image.
4、Cutting by positioning is suitable for multiple templates.
5、 The tracing-edge cutting can solve the problem of materials deformation、 stretch etc.,saving raw materials.
6、Template cutting and tracing-edge cutting both achieve cutting of continuous feeding, cutting one template by identifying one template.
7、All the object contours found by camera can be shown in the corresponding image to determine the precision easily and intuitively.
8、The laser machine has better man-machine interaction, for the object contours found one time, it can modify partly and integrally then process.
Machine advantages:of face mask camera laser cutting machine
1) High precision, High stability, Fast speed
2) Low consumption
3) Strong and durable frame, Long life
4) Imported guide rail and transmission belt
5) Imported reflector and focus lens
6) Stepping motor and driving system
7) Advanced copyrighted software
8) Excellent cooling system
9) LED realtime display
10) DSP intelligent main board
Applicable Industries: of garment camera laser cutter machine
Suitable for the precision cutting of pattern in the industries such as print fabric、all kinds of embroidery、Rapier woven、 labels、irregular trademark、garment、printing, etc.
Applicable Materials: of jersey camera laser cutting machine
All printed pattern, such as printed fabric、embroidered textile、leather、cloth、woolen、woven label、trademark，Jacquard, garment, cloth, clothes, , etc.
Technical Parameters: of label lazer cutting machine
Laser Capacity | 100W 130W 150W CO2 glass tube |
Processing Area(mm) | 900*600 1000*1200 1200*800 1300*900 1600*800 1600*1000 1600*1200 1600*1400, 1800*1000 1800*1200 1800*1300 1800*1400mm |
Positional Accuracy | ±0.05mm |
Camera resolution | 21.4 mega pixel |
Cutting Speed | 0-60m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
Our Service:
1) Guarantee for whole machine for 1 year excluding consumable parts (optical lens, etc.), laser tube 6 months, main board 1 year.
2) Lifetime maintenance is free of charge.
3) We will provide the consumable parts at an agency price when you need replacement.
4) We offer English manual and CD for installing, operation and maintaining.
5) Our technician can be sent to your company to install the machine and train your workers if necessary.
Why choose us:
1. 18 years experience on laser cutting and engraving machine.
2. Use good brand parts, excellent machine quality.
3. Free consulting, lifetime technical support.
4. Various optional types, customized acceptable.
5. Machines sold to Southeast Asia, South Asia, South America......
Six of Advantages:

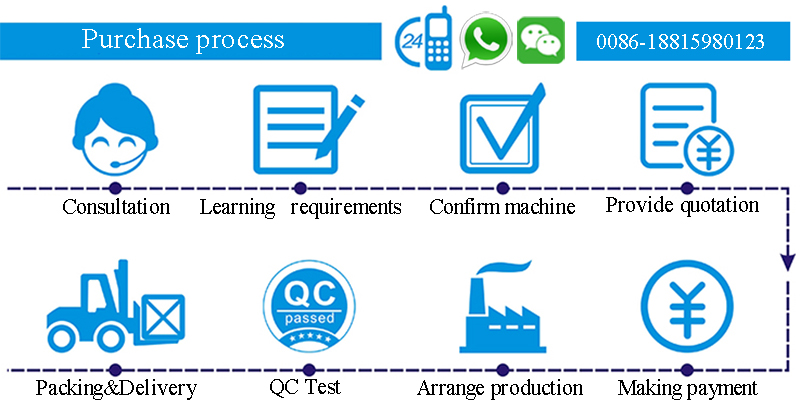

Purchase process:
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
